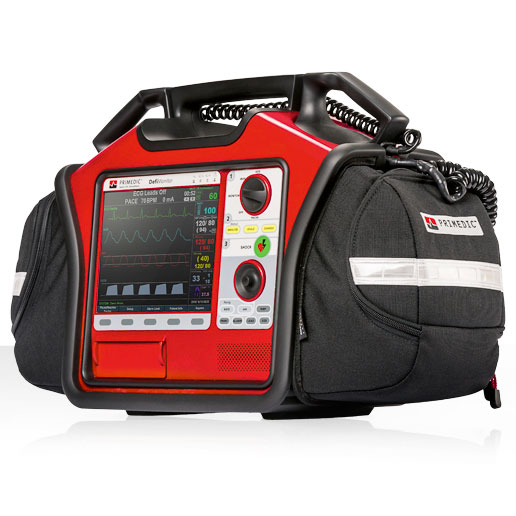

Primedic DefiMonitor EVO

EVO-2_thumb

Primedic DefiMonitor EVO Defibrillator, for use by professionals.  The De­fi­Mo­ni­tor EVO is built for use by paramedics and emergency services,  our defibrillators combine maximum equipment with the greatest reliability possible. With it, no valuable time is lost during use.

TEN HOUR OPERATION WITHOUT CHARGING
The highest level of innovation guarantees the operational reliability of the DefiMonitor EVO in even the worst of weathers. Powerful batteries ensure up to ten hours of operating time without recharging. Direct mains operation is possible.
FEATURES OF THE 12-CHANNEL DEFIBRILLATOR

  • Manual, AED and monitor
  • Transthoracic external pacemaker
  • Pulse oximeter (SpO2)
  • NIBP
  • IBP (2-channel)
  • Capnography (EtCO2)
  • Temperature (2-channel)
  • Interpretation mode
  • 3G/GSM, WLAN
  • Up to 12 ECG-channels simultaneously
  • Multiparameter patient monitoring
  • Accessory pouches for optimised storage
  • Integrated thermal printer
  • Data management
    Shock- and scratch-resistant TFT-LCD monitor, easy to read in any situation

MODULAR PRODUCT DESIGN FOR INDIVIDUAL NEEDS
Adapted to the needs of modern emergency medicine, the DefiMonitor EVO ensures continuous patient monitoring in both the preclinical and clinical fields. The modular product design permits different configurations from a basic to a fully equipped model for individual needs.



Product: Spacelabs DefiMonitor EVO Defibrillator – for professional use

Part No: 97175-1 EVO 1 Defibrillator

Part No: 97176-1 EVO 2 Defibrillator

Part No: 97177-1 EVO 3 Defibrillator

Part No: 97178-1 EVO 4 Defibrillator

General

  • Modes of operation AED mode, automatic ECG analysis with audio and visual instructions, manual mode, asynchronous
  • and synchronous defibrillation per paddles or self-adhesive electrodes, ECG monitoring and pacing

Defibrillation

  • Impulse shape Biphasic
  • Energy in the automatic mode According to patient impedance
  • Energy levels in manual mode 1J, 2J, 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 15J, 20J, 30J, 40J, 50J, 75J, 100J, 125J, 150J, 175J, 200J, 300J, 360J
  • Charge time < 6s for 200 J (with a new, fully charged battery at 25 °C)
  • 8 s for 360 J (with a new, fully charged battery at 25 °C)
  • Pacemaker detection Detect pacer pulses of ±2 mV to ±700 mV with pulse widths of 0.1 msec to 2 msec
  • and a rise time of 10 % of the width but not more than 100 μs
  • Cardioversion Manual activation of the cardioversion via the SYNC button, defibrillation via paddles as well as self-adhesive electrodes

Defibrillation electrodes

  • Adhesive electrodes Hands-free
  • Shelf life 36 months
  • Cable length 2.0 m
  • Active electrode surface 174 cm² overall
  • Paddles Adult electrodes with built-in child‘s electrodes
  • Functions of paddles Energy selection and charging / discharging as well as printing of data by operating the paddles

Monitor

  • Model TFT-LCD colour, dual mode
  • Dimensions 170 x 128 mm (diagonal 8.4“/ 212 mm)
  • Resolution 800 x 600 pixel
  • Number of channels 4 waveforms or 12 ECG channels, cascaded can be shown
  • Resuscitation guideline
  • Factory set Guideline 2010 (ERC / AHA)

ECG

  • 12-Channel-Leads Extremities acc. to Einthoven (bipolar) I, II, III, extremities acc. to Goldberger (unipolar) aVR, aVL, aVF,
  • thoracic wall leads to Wilson (unipolar) V1, V2, V3, V4, V5, V6
  • Heart rate 20 to 300 bpm
  • Analysis time 5–9 s
  • Interpretative algorithm 12-channel interpretation analysis program of Glasgow University

Transthoracic pacemaker (NIP)

  • Modes FIX, DEMAND
  • Stimulation frequency 30 ppm to 180 ppm
  • Impulse current 0 mA to 140 mA
  • Impulse shape Rectilinear, constant current

Pulse oximeter (SpO2)*

  • Model Nellcor®
  • Range 1 % bis 100 %
  • Pulse rate 20 – 300 bpm
  • Accuracy 70% – 100%“

NIBP*

  • Operation mode Manual and automatic measurement of interval
  • Technology Oscillometric measurement
  • Measurement range adult / child SYS 60 to 250 mmHg / MAP 45 to 235 mmHg / DIA 40 to 200 mmHg
  • Measurement range neonatal SYS 40 to 120 mmHg / MAP 30 to 100 mmHg / DIA 20 to 90 mmHg

IBP*

  • Measurement range -50 – 300 mmHg
  • Channels 2 parallel connections

Capnography (EtCO2)*

  • Type/EtCO2 -Module Respironics® / Mainstream / Sidestream
  • Ambient-CO2-level 0 – 150 mmHg
  • Parameter EtCO2, InCO2

Temperature*

  • Measurement method Thermistor, YSI compatible
  • Range 0 to 50 °C (32.0 to 122 °F)
  • Channels 2 parallel connections

Respiration Rate

  • Technology Impedance measurement via ECG electrodes / Capnography

External interfaces

  • SD Memory Card For extended memory (for software updates)
  • Telemetry 3G/GSM, WiFi

Data management

  • Memory 12-channel ECG (100 records) / event (250 records)
  • Storage medium internal memory, SD card

Integrated printer

  • Model Thermal printer
  • Channels up to 12 channels
  • Paper Thermal paper, folded
  • Paper size 80 mm
  • Printer speed 25 or 50 mm/s

Power supply

  • AC power Wide range power supply 100 V – 240 V, 50 Hz/ 60 Hz
  • Rechargeable battery Lithium-ion, 14,4 V / 5200 mAh
  • Operation time Up to 10 hours
  • Number of shocks 200 shocks@200 J (1 battery), 400 shocks@200 J (2 batteries)*
  • Recharging time Approx. 5 hours

Dimensions

  • Height x width x depth Approx. 350 mm x 430 mm x 220 mm
  • Weight Approx. 7 kg excluding paddles, accessories and energy supply

Accessories

  • Standard Accessories bag

Options

  • Fixation Vehicle charger / wall mount EVO according to standards EN1789

Ambient conditions

  • Protection class IP55
  • Operating temperature 0 – 50 °C
  • Storage temperature -20 – 70 °C
  • humidity 5 – 95 %, non-condensing
