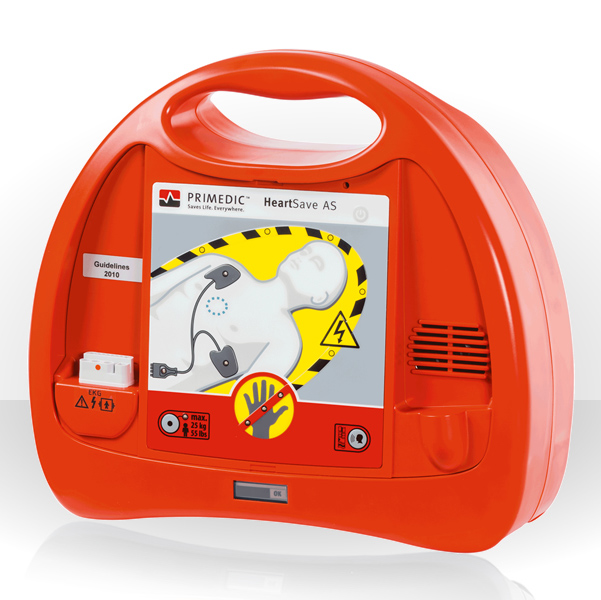

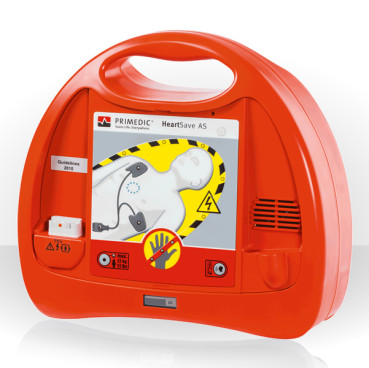

Spacelabs HeartSave AS Defibrillator

HeartSave AS Defibrillator – for use in emergency first aid situations. The new fully automatic companion for all emergency situations.  Saves lives. Fully por­ta­ble. Fast.

The oc­cur­rence of sud­den car­di­ac ar­rest can­not be preven­ted. But the con­se­quen­ces can! The per­son af­fec­ted has only a few pre­cious mi­nu­tes left for a chan­ce of sur­vi­val. The new tech­no­lo­gy de­ve­l­o­ped by PRI­ME­DIC™ means that even fewer steps are re­qui­red for first ai­ders: this is be­cau­se the fully au­to­ma­tic HeartS­a­ve AS au­to­ma­ti­cal­ly de­li­vers an electric shock – pre­ce­ded by an au­di­b­le warning – if the de­fi­bril­la­tor de­tects life-threa­ten­ing fi­bril­la­ti­on. The tech­ni­cal ad­van­ce: there’s no need to press the shock but­ton.

In an emer­gen­cy, all first ai­ders need to is to per­form car­dio­pul­mo­na­ry re­susci­ta­ti­on and apply the HeartS­a­ve AS de­vice’s ex­tre­me­ly ea­sy-to-use, pre-plug­ged Sa­ve­Pads (elec­tro­des). Ea­sy-to-un­der­stand voice prompts then guide first aid per­son­nel step-by-step through the res­cue pro­ce­du­re.

• Voice prompts in four lan­gua­ges
• Freely selectable language packs
• Com­pact Flash Card, ECG Viewer
• 6-ye­ar li­thi­um bat­te­ry

Product: Spacelabs Primedic HeartSave AS Defibrillator – for first aiders

Part No: 97465

• Defibrillation
  • Impulse shape: biphasic, current-controlled impulses, external (CCD)
  • Energy: 50 – 360 J according to patient impedance
  • Analysis time: 7 – 12 s
  • Asystole threshold < 200 μV
  • Artefact detection
  • Pacemaker detection
  • Pediatric Mode: Pediatric button or Savepads Mini
• ECG
  • Derivation: Einthoven II
  • Patient resistance: 23 – 200 Ohm
  • Heart rate: 30 – 300 per min.
• Disposable electrodes
  • Adhesive Electrodes (hands free)
  • Electrode connection: Pre-connected
  • Shelf life: 36 months
  • Cable length: according to the model between 1,3 m and 2,0 m
  • Active electrode surface: 174 cm² overall
  • Storage Conditions: 0°C to 50°C
• Data management
  • Removable memory: CompactFlash (CF) card 2GB
  • Data/voice recording: approx. 24 h data and voice recording
  • Read out software (CD)
• Power supply
  • Model: LiMnO2
  • Voltage: 15 V
  • Capacity (nominal): 2.8 Ah
  • Service life: 6 years
  • Discharges/shocks 200@360J
• Environmental conditions
  • Operating condition: 0°C … 55°C (30…95% rel. humidity without condensation, 700 … 1060 hPa)
  • Storage conditions: -20°C … +70°C (20…95% rel. humidity without condensation, 500 … 1060 hPa)
• Resuscitation guidelines
  • guidelines 2010 (ERC/AHA) at factory
• Protection Class
  •  IP55
• Dimensions
  • Height x Width x Depth 25 cm x 28 cm x 9 cm
  • Weight without power supply: approx 2.0KG
  • Weight incl. power supply : approx. 2.5 kg
• Standard Scope of Delivery
  • 1 HeartSave AS, 1 battery, 1 pair SavePads PreConnect, 1 SaveCard, 1 pair of Scissors

• Spacelabs,Primedic FirstAid min.pdf
