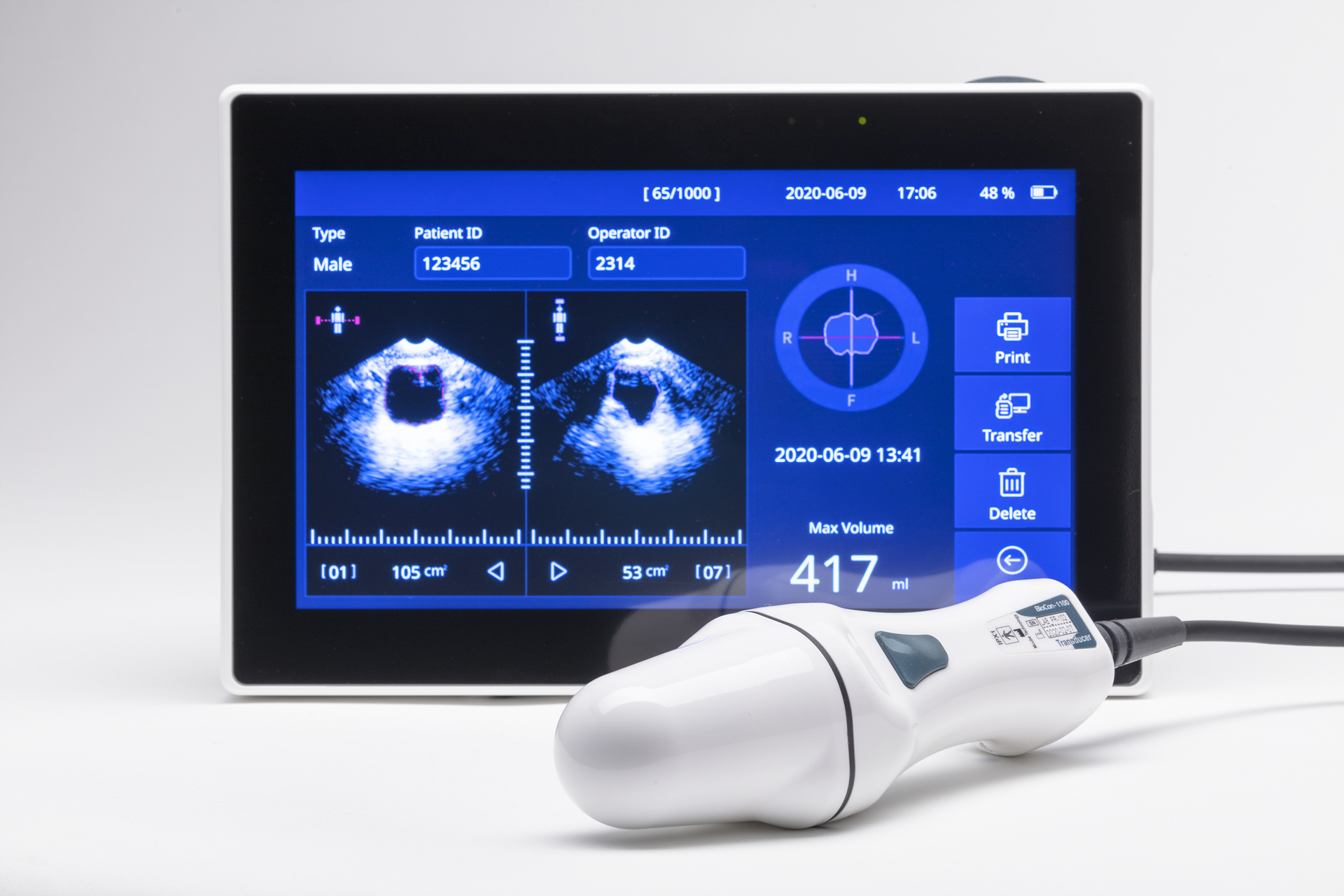

Mcube BioCon-1100 Bladder Scanner
The BioCon-1100 measures bladder volume non-invasively with ultrasound.
The 3D-Mechanical Sector Transducer captures the bladder in 12 sections and calculates the volume of the bladder based on the images.
Product: Mcube CubeScan BioCon 1100 Bladder Scanner
Part No: BioCon-1100
- Non-Invasive Measurement
- Real-Time Pre-Scan
- Review of scanned bladder images
- Save and Retrieve scanned information
- PC-transfer of scanned information
- Built-in Printer
- Evaluates urinary retention
- Indicates bladder over-distension
- Measures PVR (post-void residual)
- Minimizes unnecessary catheter usage, thereby reducing incidence of urinary tract infection
- Manage post-operative urinary retention
- Improves quality of patient care
- Saves time (2 second scan) with increased efficiencies
- Display – 10.1” Wide SVGA screen (Colour Touch Screen)
- Volume Range – 0~999ml, Accuracy: +-7.5%(100-999ml) +-7.5ml(0-99ml)
- Printer – Built-in (50mm width) thermal printer
- Ultrasound Probe – Dual frequency (2.8MHz; 3.7MHz) B Mode scan image
- Scan angle= 125 degrees
- Penetration depth = 230mm
- Power – 3A, 9V DC Adapter (Adapter Input: AC 100 ~ 240V 50/60Hz), 7.26V battery pack (Li-ion)
- Dimensions – 66mm(L) x 202mm(W) x 130mm(H) (0.92Kg)

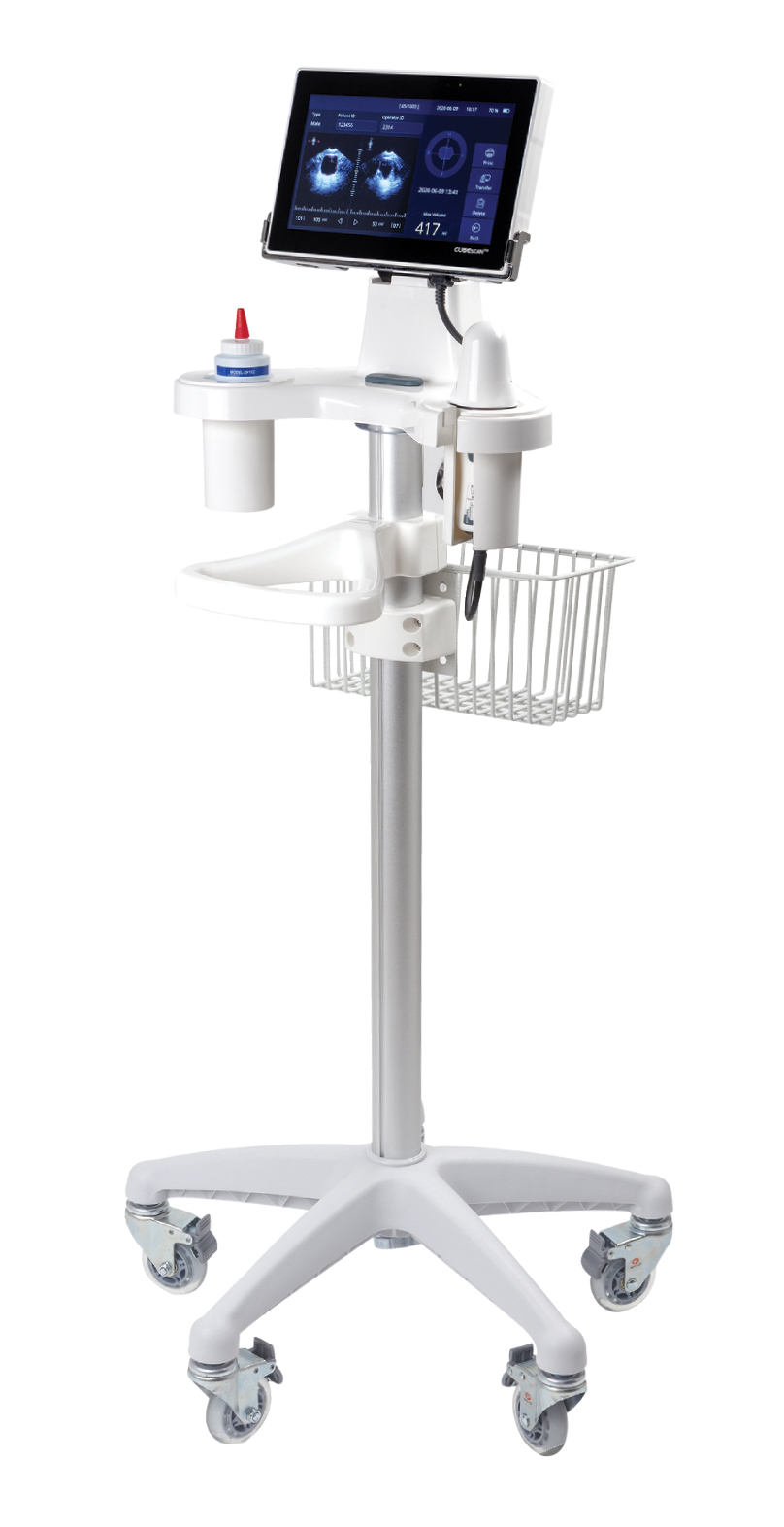

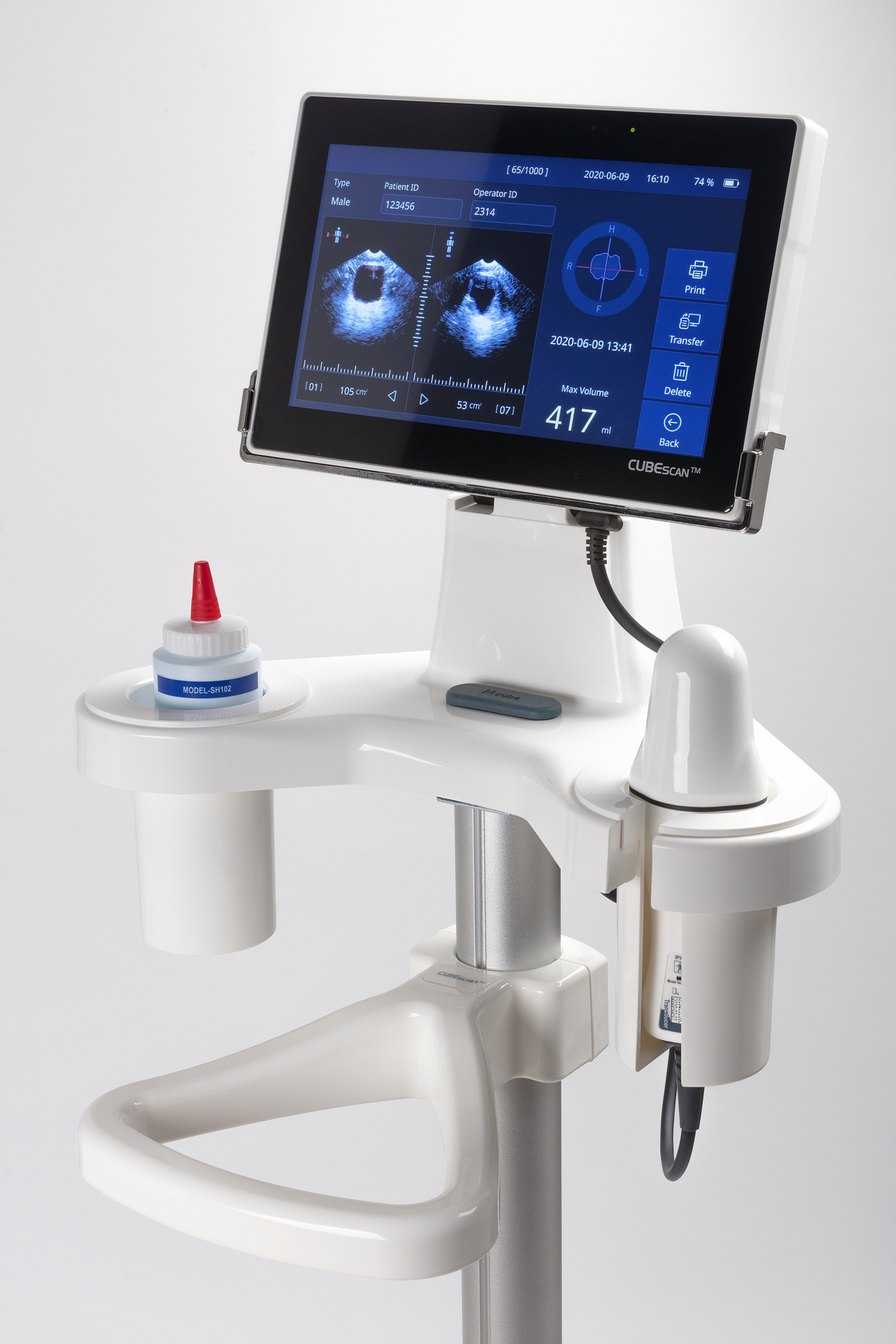

- MRC-1100 – BioCon 1100 Bladder Scanner Trolley
- 1PT0000001 – BioCon 1100 Phantom Bladder
- 17S2100001 - BioCon 1100 Calibration kit
- 5610100005 – BioCon 1100 Battery Pack
- 4MC000014 – BioCon 1100 Thermal paper
