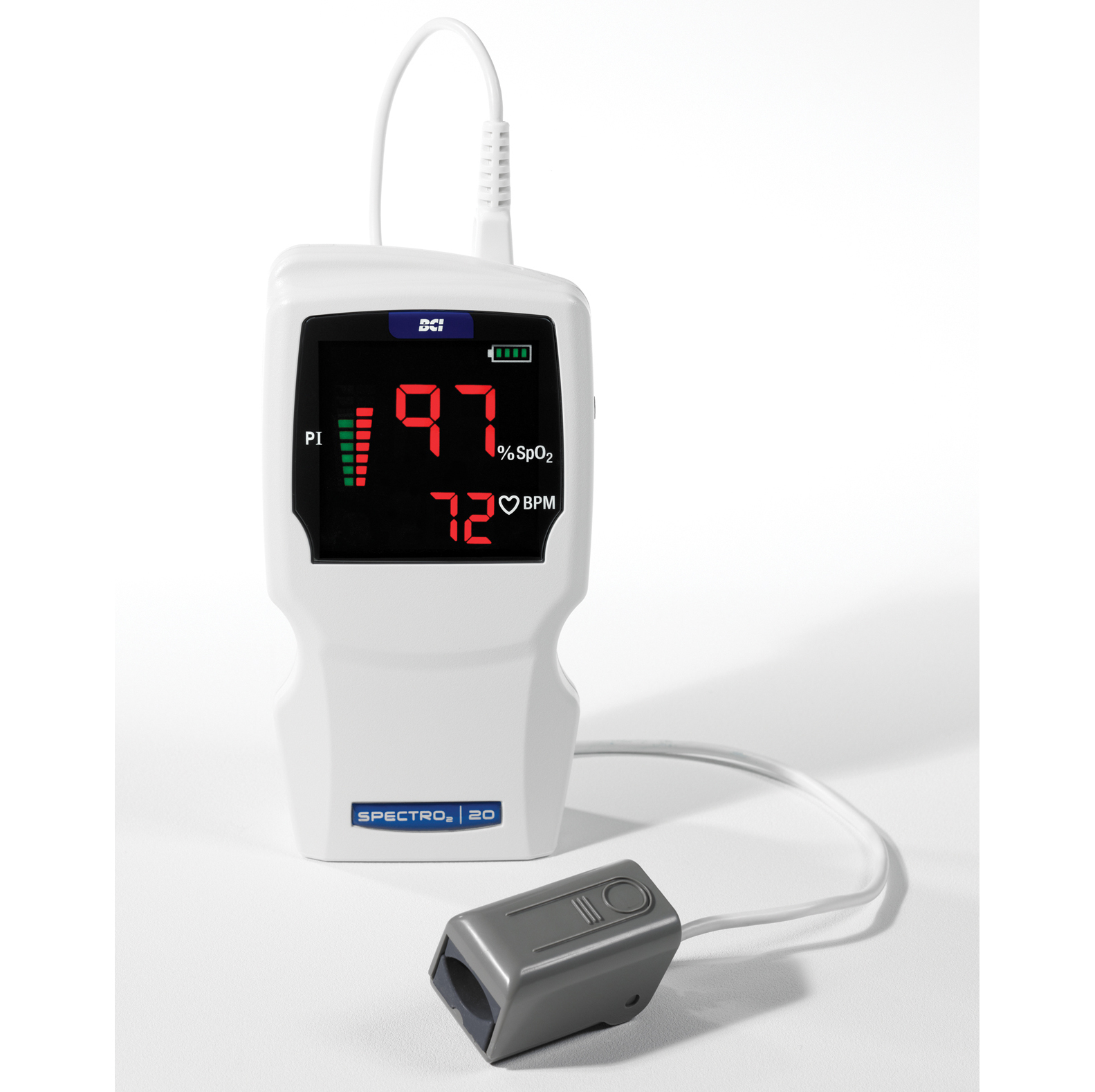

SPECTRO2 20 Digital Pulse Oximeter

Spectro 2 20

The SPECTRO2 20, part of the Spectro Range of pulse oximeters, by Smiths BCI.  The SPECTRO2 20 Oximeter aids health care providers in responding to a wide range of patient needs, including higher acuity care and ambulatory situations such as inter- and intra-hospital transport, triage patient tremors, and unstable patients.

  • The SPECTRO2 20 features include:
  • Reliable readings in a wide variety of challenging patient care situations – low perfusion performance, motion tolerance.
  • PI (Pulse amplitude Index) Indicator – Helps identify and maintain a good test site, enables confidence in results.
  • One of the largest displays on the hand-held market.
  • On-board sensor storage cradle – Stores and protects sensor, reduces damage and minimises replacement costs.
  • Sensor is always ready and available.
  • Versatility with multiple sensors – Compatible with all BCI sensors, New BCI 20-inch Spot-Check Sensor, Nellcor sensor compatibility.

Accessories: Docking station; attachable printer; power options including disposable batteries, AC power, BCI rechargeable lithium ion battery, USB cable; protective rubber covers, SPECTRO2 Logix Clinical Analysis Software. 3 Year Warranty

Product: BCI Spectro2 20 Digital Pulse Oximeter

Part No:WW1020

  • DISPLAYS AND INDICATORS
  • Keys – ON/OFF button
  • SpO2 (FUNCTIONAL)
  • Range
  • 0 to 100%(1%increments); displaymaximum99%
  • Standard Accuracy
  • Adult / Ped ±2 A rms at 70 – 100%
  • Neonate1 ±3 Arms at 70 – 100%
  • Less than 70%unspecified
  • Low Perfusion Accuracy
  • Adult / Ped ±2 A rms at 70 – 100%
  • Neonate1 ±3 Arms at 70 – 100%
  • Less than 70%unspecified
  • Motion Accuracy2
  • Adult / Ped ±3 A rms at 70 – 100%
  • Less than 70%unspecifed
  • Averaging _ 8 beats

PULSE SIGNAL STRENGTH

  • Range
  • 0 to 9 indicator, indicates logarithmic strength of patient pulse
  • Display – 9-segment red LED bar graph

PULSE RATE

  • Range – 20 – 300 bpm(1bpm increments)
  • Standard Accuracy – ±2 Arms
  • Low Perfusion Accuracy
  • ±3 Arms over 25 – 250 bpmrange
  • Less than 70%unspecified (Pulse amplitude <1%. Tested using industry standard simulator.)
  • Averaging – 8 seconds

PULSE AMPLITUDE INDEX

  • Range – 0.03%- 20%(0.01%increments)
  • Display – 9-segment green/yellowLED bargraph

POWER REQUIREMENTS

  • Battery
  • 4 “AA” alkaline or custom2-cell LithiumIon rechargeable battery pack
  • External (frommains)
  • 9V, 3A output; input of 100-240 VAC, 50Hz, 60Hz
  • External (fromUSB)
  • Input: 5V, 500mAmax (USB powered source)
  • Output: 9V, 230mAmax to oximeter

BATTERY LIFE

  • Alkaline Cells Life – Approx. 26 hours of continuous use
  • Rechargeable Battery Life
  • Approx. 31 hours of continuous use (new);
  • Approx. 3 hours typical recharge time
  • MEMORY – Stores data for up to 99 patients

TREND STORAGE Parameters

  • %SpO2, Pulse Rate, Pulse amplitude Index and
  • absolute time fromRTC
  • Interval – 4 seconds
  • Capacity – 144 hours at 4 second intervals
  • External Connectors
  • Oximeter Sensor DB-9 Connector; Custom interconnect allowing connection for either USB communications, AC Mains Power input, or dock connection with or without printer

ENVIRONMENT

Operating Temperature

  • Oximeter and accessories: 0C to 55C
  • Power supply: 0C to 40C
  • Li+ battery charging: 5C to 45C

Relative Humidity

  • Operating: 15 to 95%(non-condensing)
  • Storage: 10 to 95%(non-condensing)
  • Altitude – Up to 10,000 ft.
  • Shock and Vibration – Transport per ISO 9919

PHYSICAL

  • Dimensions (mm) – 84 Wx 155 H x 43 D
  • Weight – 340g including four “AA” batteries

STANDARDS

  • EN60601-1, EN60601-1-2, ISO 9919
  • WARRANTY – 3 years
  • WW1025OUS Docking Station
  • WW1026SYS Attachable Printer
  • WW1018R Red Protective Rubber Glove
  • WW1018B Blue Protective Rubber Glove
  • WW1018G Green Protective Rubber Glove
  • WW1018Y Yellow Protective Rubber Glove
