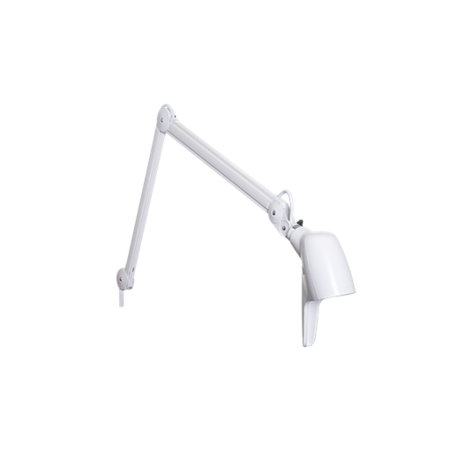

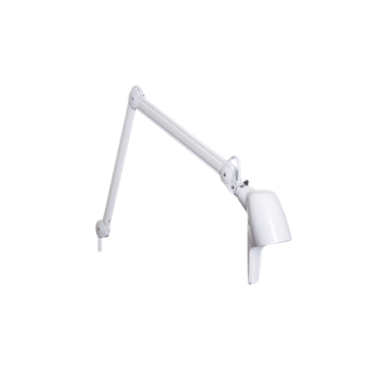

Luxo Carelite LED – New generation

big-carelite-led_105cm

The new Carelite is a natural development of our original patient’s bed head luminaire, which can be found in hospital wards and patient rooms all over the world.

It is the use of modern LED light sources that has made it possible to reduce the size of the new lamp head, compared with the original. Still, the integrated ergonomic handle remains an important feature, enabling the patient to direct the light exactly where he or she wants it, with minimal effort. The switch is positioned exactly where the thumb will find it when the hand grabs the handle. This makes operation easy even for patients with disabilities. Carelite is fully dimmable.

Integrated night light
Carelite is equipped with a night light, just enough for the nurse to check on the patient.

Exact positioning
Carelite has a covered spring balanced arm for easy cleaning and safe and easy positioning. The flexibility and precision of the spring balanced arm means that Carelite can be positioned exactly where the light is required. The light sources are positioned well inside the lamp head, in order to avoid glare. This is particularly important in multi-bed wards, as it allows one patient to have his or her reading light on without disturbing other patients in the ward.

All-metal construction
Carelite is made of powder-coated metal, such as aluminium and steel.

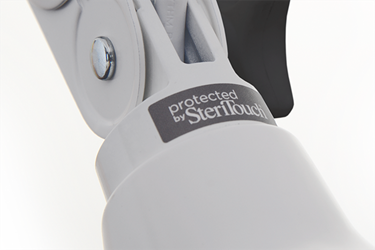

Protected by SteriTouch®
Carelite is painted with SteriTouch® antimicrobial powder coating, which prevents the growth of bacteria, biofilm and mould. Based on ionic silver technology, the antimicrobial performance remains continuously effective throughout the product’s lifetime.

Easy replacement
The new Carelite features the same arm construction and spigot as the traditional version. This means that all brackets and clamps can be reused with this new version.

LED – light source of the future
Light emitting diodes are not only small and robust. Carelite’s LEDs are extremely energy efficient, and have an incredible life span of 50 000 hours or more. The powerful LED module has an excellent light output giving approximately 2000 lux @ 0.6 metres.

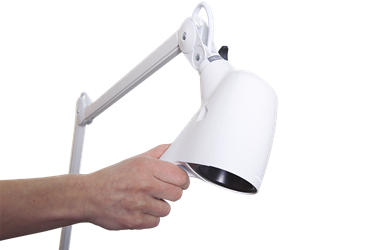

Ergonomic handle

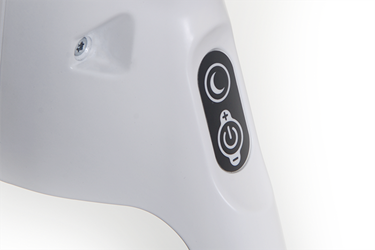

The light switch is positioned exactly where the thumb will find it when the hand grabs the handle.

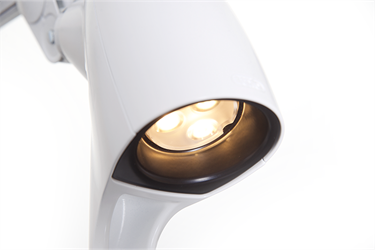

Excellent light output
The powerful LED module has an excellent light output giving approximately 2000 lux @ 0.6 metres.

Integrated night light
Carelite is equipped with a night light, just enough for the nurse to check on the patient.

Protected by SteriTouch®
Carelite is painted with SteriTouch® antimicrobial powder coating, which prevents the growth of bacteria, biofilm and mould.

Light source
LED: 400lm
3000K and CRI >90

Driver
Electronic, dimmable ballast as standard.

Body material & colour
Steel arm with plastic covers. Shade in aluminum.
Available in white colour.

Mounting
Carelite can be wall, table or trolley mounted. Various mounting brackets and trolley are available on request.
For mounting on trolley, we recommend the use of extra weight for more stability.

Connection
Delivered with cable and plug.

Arm technology & movement
Parallel, three-pivot arm. Arm lengths are 105 cm for the table version and 105 cm or 115 cm for the wall version.

Switch
On/Off and dim.
Nightlight: Starts at minimum light level.

Medical approvals and certificates
EN60598-2-25
