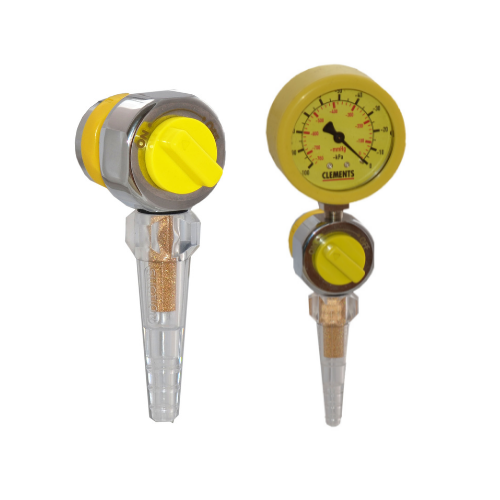

Clements Suction Nozzles

Simple, reliable and cost effective, Clements direct suction nozzles are ideal where basic on/off control of suction from a centralised vacuum source is required.

Available in vertical position and with or without gauge.

• Vacuum range 0 to -100 kPa [750 mmHg]
• Robust construction
• Dual scale gauge allows clear vacuum indication
• Low maintenance
• Spares available
• Available with International probe kits

12 Month Warranty

Product: Clements  Suction Nozzles

Part No: Various.  Review the brochure, or contact Ecomed to define your ordering needs.

• Vacuum: 0 to -96 kPa [0 to -720 mmHg]
• Flow Rate: 50 litre/minute
• Gauge: Bourdon Tube Type, Dual Scale, graduated in kPa and mmHg
• Gauge Range: 0 to -100 kPa graduated at 5 kPa, 0 to -760 mmHg graduated at 20 mmHg
• Standard Filter: Porous Bronze Filter
• Safety Trap with Float Valve
• Dimensions: 125 mm H 60 mm W 45 mm D
• Weight: 315 g (480 g packed)
• Australian Standard: AS 2120.3
• ARTG Number: 141960
• Ambient Temperature: +5C to 35 C
• Standard Conditions: 25C Sea Level -101 kPa

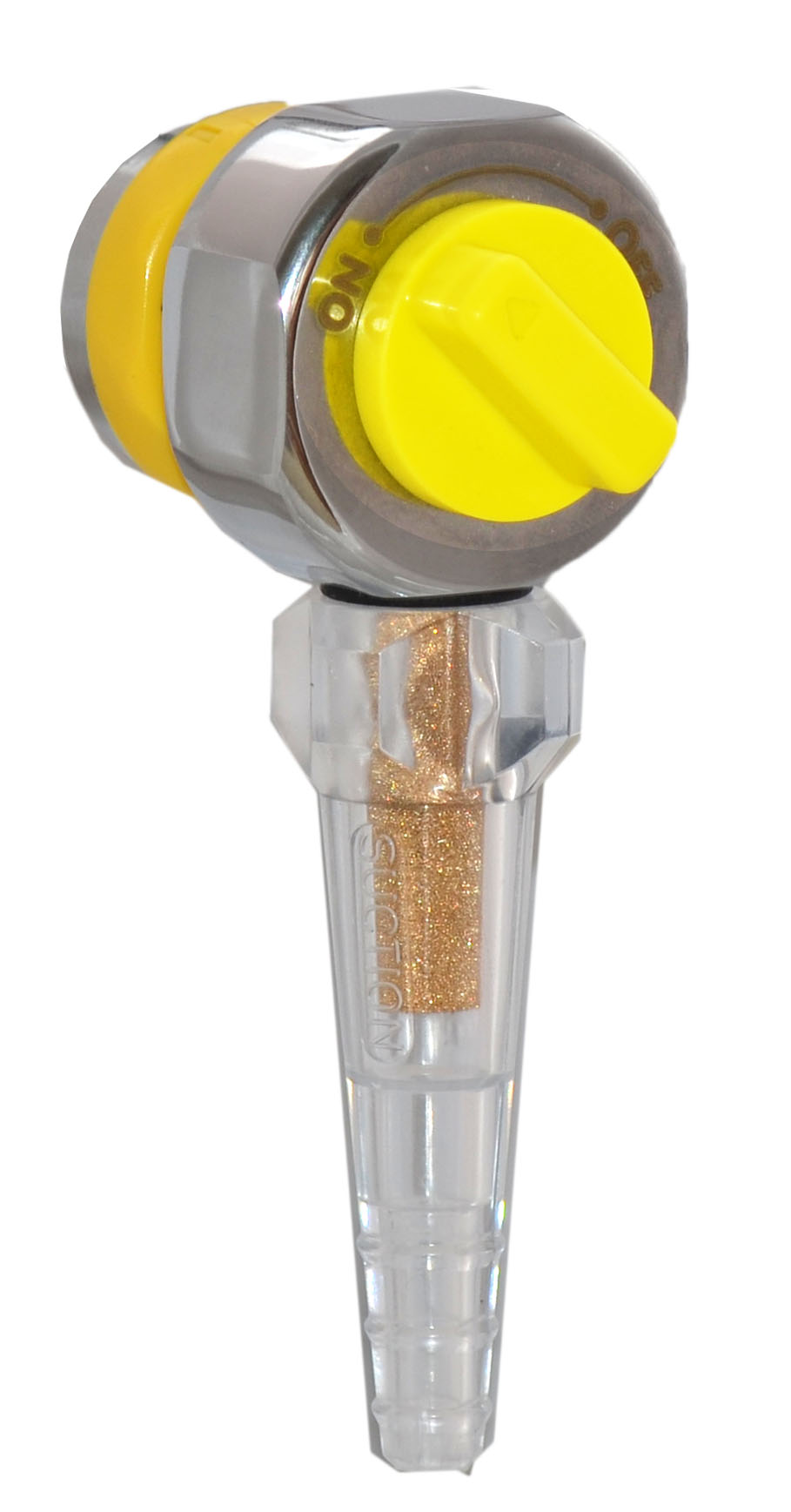

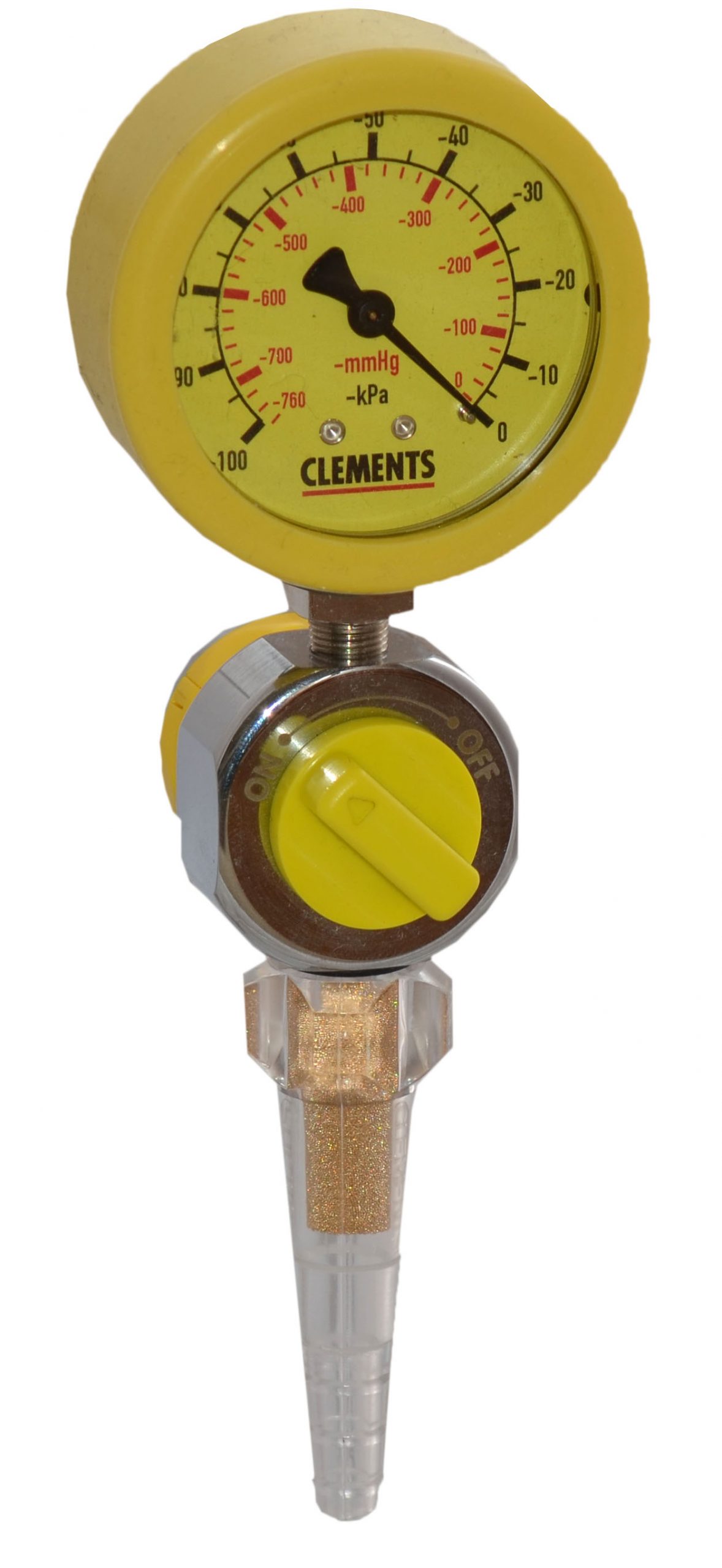

• Available models: Vertical with gauge, Vertical without gauge

• SUC 89140 085 MAK 300 antibacterial canister with lid
• SUC 89310 Porous bronze filter
• SUC 89240 081 MAK 500 canister with lid
• SUC 89240 090 HEPA bacterial filters (Pack of 20)
• SUC 89240 080 Adapter for attaching MAK canisters to controllers
• SUC 80970 Plastic hose tail with O ring
• SUC 89240 088 MAK 300 jar only
• SUC 89240 084 MAK 500 jar only

• CLEMENTS - NOZZLES - ECOMED BROCHURE - 230222.pdf
