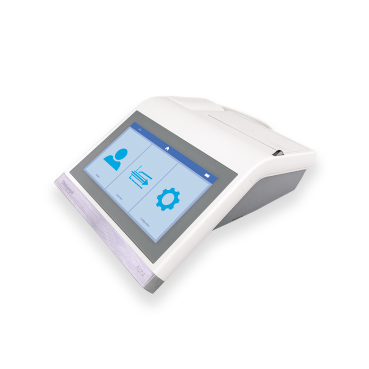

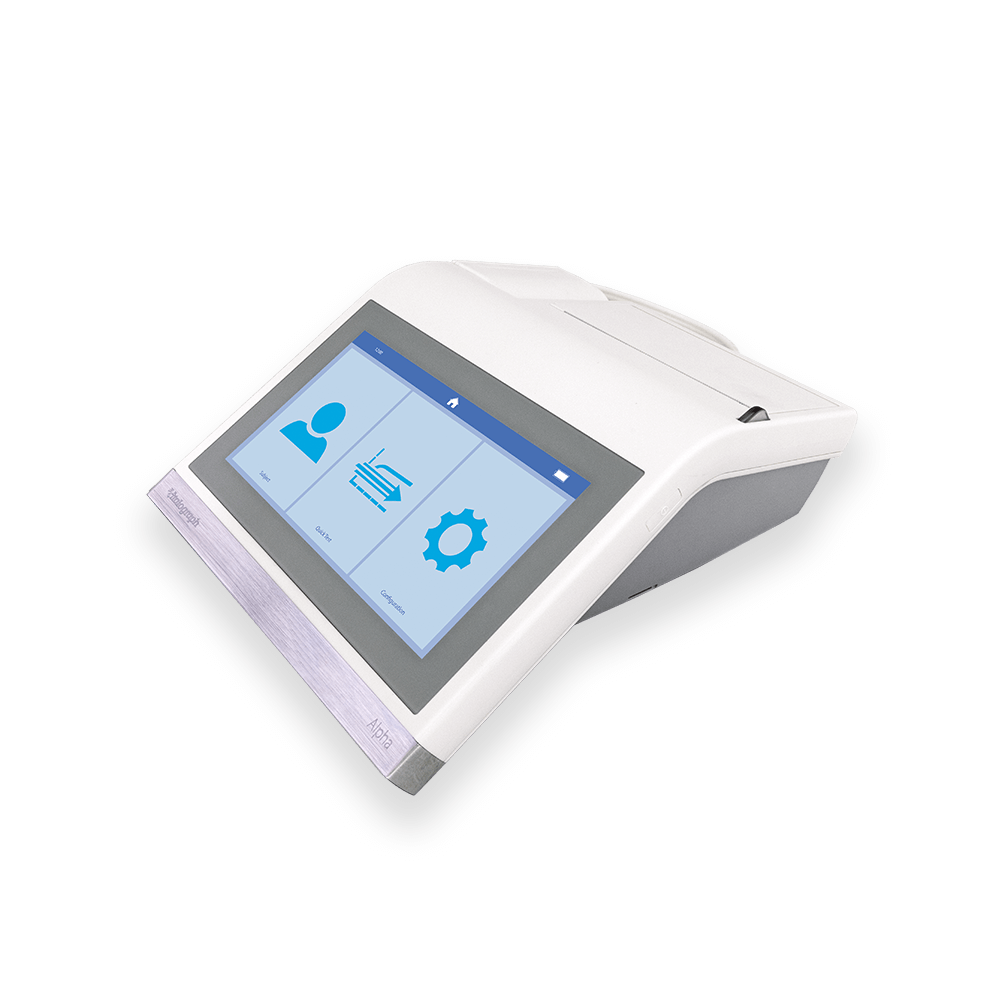

Vitalograph New Alpha Spirometer – ATS/ERS 2019 Compliant

6000_Alpha_New04-1

The new Alpha encompasses compliance with the ATS/ERS 2019 spirometry guidelines, multiple testing options, quick loading integrated thermal printer and direct links to Vitalograph Device Studio to generate PDF reports. Vitalograph Connect provides versatile connectivity to your electronic medical records via HL-7 and GDT, taking spirometry testing to the next level.  Features a 7” high-resolution touch-screen and a redesigned intuitive user friendly interface.

The Alpha Spirometer comes with:

  • Vitalograph Device Studio
  • Vitalograph Connect
  • USB cable
  • Ethernet cable
  • Medically approved power supply with country specific plug
  • Carry case

Features:

  • Meets 2019 ATS/ERS standardization of spirometry update.
  • Supports full feature Spirometry Testing and Bronchodilator Responsiveness Testing with over 50 available parameters.
  • Utilising proven, highly accurate, robust, and stable flow measuring technology.
  • Fast integral thermal printer – No PC required.
  • Lowest running costs & environmentally friendly: no need for costly disposable sensors, turbines, spirettes or flow tubes.
  • Save time & money on cleaning using Vitalograph BVFs with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.
  • Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria.
  • Automatic interpretation based on ATS/ERS & GOLD standards.
  • Ensure accurate results with quick and easy calibration verification routines recommended by 2019 ATS/ERS spirometry guidelines.
  • Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores. Other predicted equations are selectable.
  • Direct connectivity with Vitalograph Device Studio to generate PDF reports and receive the latest firmware updates.
  • Share test data easily with compatible Electronic Health Records (EHR) and Electronic Medical Records (EMR) systems through HL7, GDT.

Comes with 5-Year Warranty with unlimited technical support if registered within 30-days of purchase.

Flow Detection Principal Fleisch flow technology
Essential Performance Test Limits Flow Accuracy ±10% or ±20 L/min, whichever is greater
Volume detection Flow integration sampling @ 100Hz
Maximum displayed volume 10 L
Volume accuracy Better than ±2.5%
Voltage/Frequency Power Supply: Input 100-240V, 50/60HZ, Output 12V, 1.5A, Battery: 7.2V, 2.2Ahr
Performance standards met or exceeded by Vitalograph ALPHA ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
QA/GMP standards EN ISO 13485, FDA 21CFR820, SOR/98-282 & JPAL, MDSAP
Dimensions 204 mm (length) x 253 mm (width)
Weight 1.5 kg net
Power Supply 12V, 1.5A DC power supply 7.2V, 2.2AHr NiMH battery
  • 70201 Spirotrac Multi-User Licence
  • 28750 BVF_ Bacterial/Viral Filters (50)
  • 20242 SafeTway Mouthpieces (200)
  • 20201 Cardboard Mouthpieces (200)
  • 20303 Noseclip Disposable (200)
  • 36020 Precision Syringe 3-L
  • 66149 Thermal printer paper (5)
  • 42084 Flow conditioning meshes (10)
