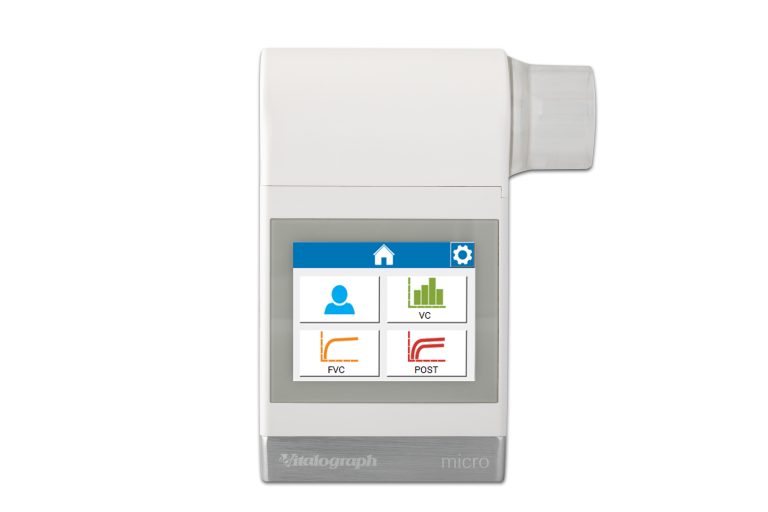

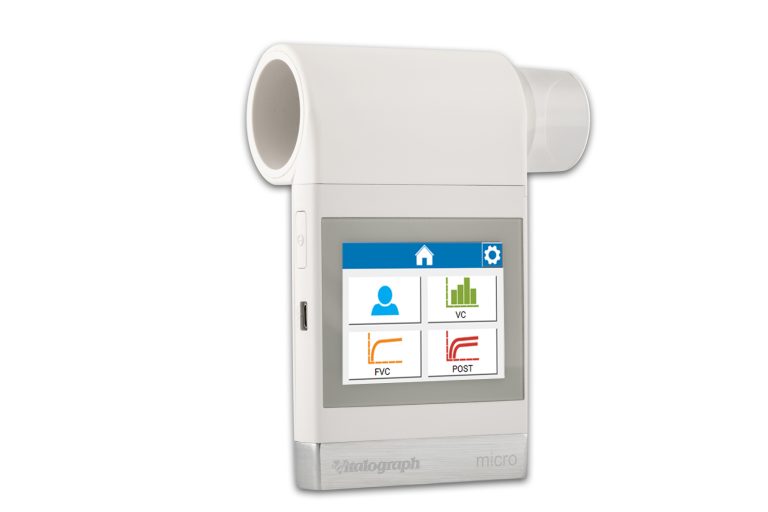

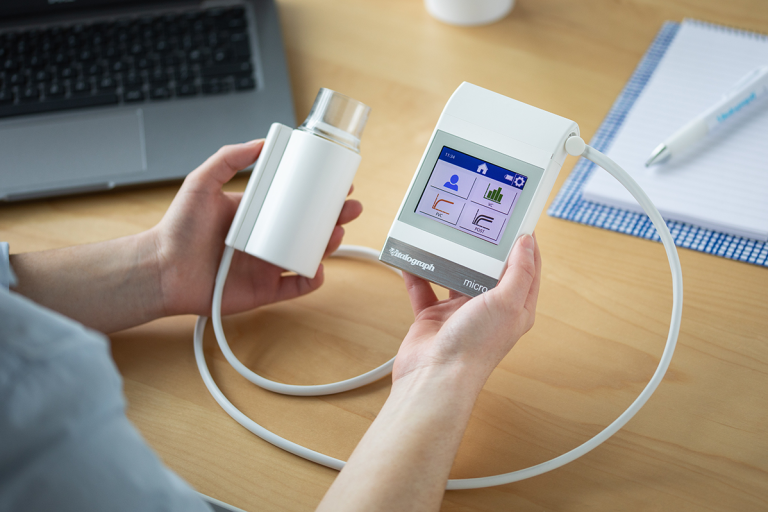

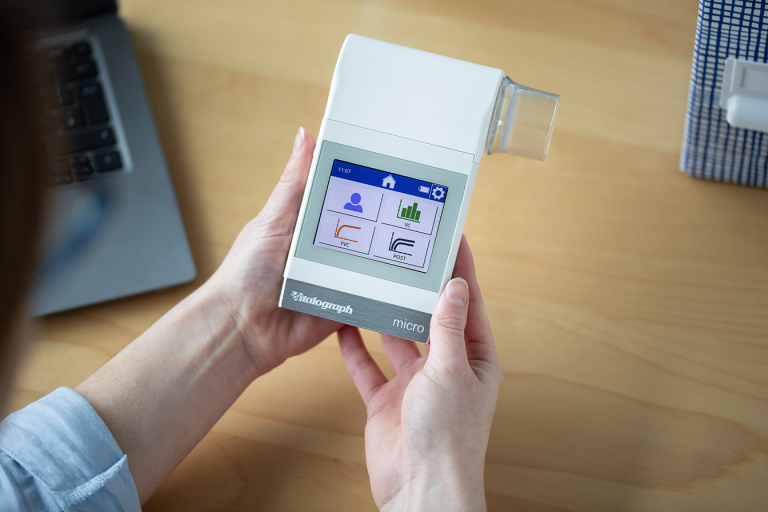

Vitalograph Micro hand-held Spirometer

19722 Micro with screen shot hi res

The New Micro, by Vitalograph – Pocket Spirometer with PC Spirometry reports.  The Vitalograph micro is quick and easy to use as part of a routine physical examination. The micro now comes with the ‘Vitalograph Reports’ PC software for creating PDF’s that can be viewed, archived, transmitted or printed.

Single breath evaluation of the most important test parameters are ready at a glance on-screen with additional parameters, predicted values, percentages and interpretation available on the PDF report.

  • Features:
  • Rapid single breath evaluation of FVC, FEV1, FEV1% &PEF
  • Includes Vitalograph Reports, PC PDF software
  • PDF report provides additional parameters, f/v and v/t curves with test quality, predicted values and interpretation
  • Solid-state Fleisch technology with no moving parts
  • Linear flow measurement with low back pressure
  • Low cost, compact, lightweight and robust
  • Precise technology for total confidence

Accessories: SafeTway Mouthpieces, Mini SafeTway mouthpieces, disposable noseclips, Precision Syringe, serial spirometry record cards, small padded carry case, half day operator training 12 Month Warranty

Product: Vitalograph micro

Part No: 63310

  • Parameters Displayed: FVC, FEV1, FEV1%, PEF
  • Parameters on Report: FVC, FEV1, FEV1%, PEF, FEV6, PEF, FEF25, FEF50, FEF75, FEF25-75
  • Operating Temperature: ATS/ERS Limits: 17 -37 _C Design limits: 10 – 40 _C
  • Battery: User-replaceable, PP3 400 tests operating life, Auto shutdown 2 minutes after last key press
  • Measuring principle: Solid state No2 size Fleisch pneumotachograph
  • Accuracy: Better than +/-3% volumes
  • Range:0 – 9.99 L BTPS
  • Flow Impedance: Better than 0.15 kPa/L/s at 14 L/s including SafeTway
  • Display: Custom Liquid Crystal Display
  • Size: 6Ó x 3Ó x 1 1/2Ó
  • Weight: 5 oz
  • Performance Standards: ISO EN 23747:2005 ATS/ERS:2005 Guidelines
  • Safety Standards: EN ISO 60601-1:2005 -1 -2 -4
  • Medical Safety Standard: Medical Devices Directive 93/42/EEC1993
  • Designed & Manufactured Under: ISO 13485:2003, FDA 21CFR820, CMDR & JPAL
  • 36020 3-L Precision Syringe
  • 28750 BVF - Bacterial/Viral Filters (50)
  • 20242 SafeTway Mouthpieces (200)
  • 20980 Mini SafeTway Mouthpieces (50)
  • 20201 Cardboard Mouthpieces (200)
  • 20303 Disposable Noseclips (200)
