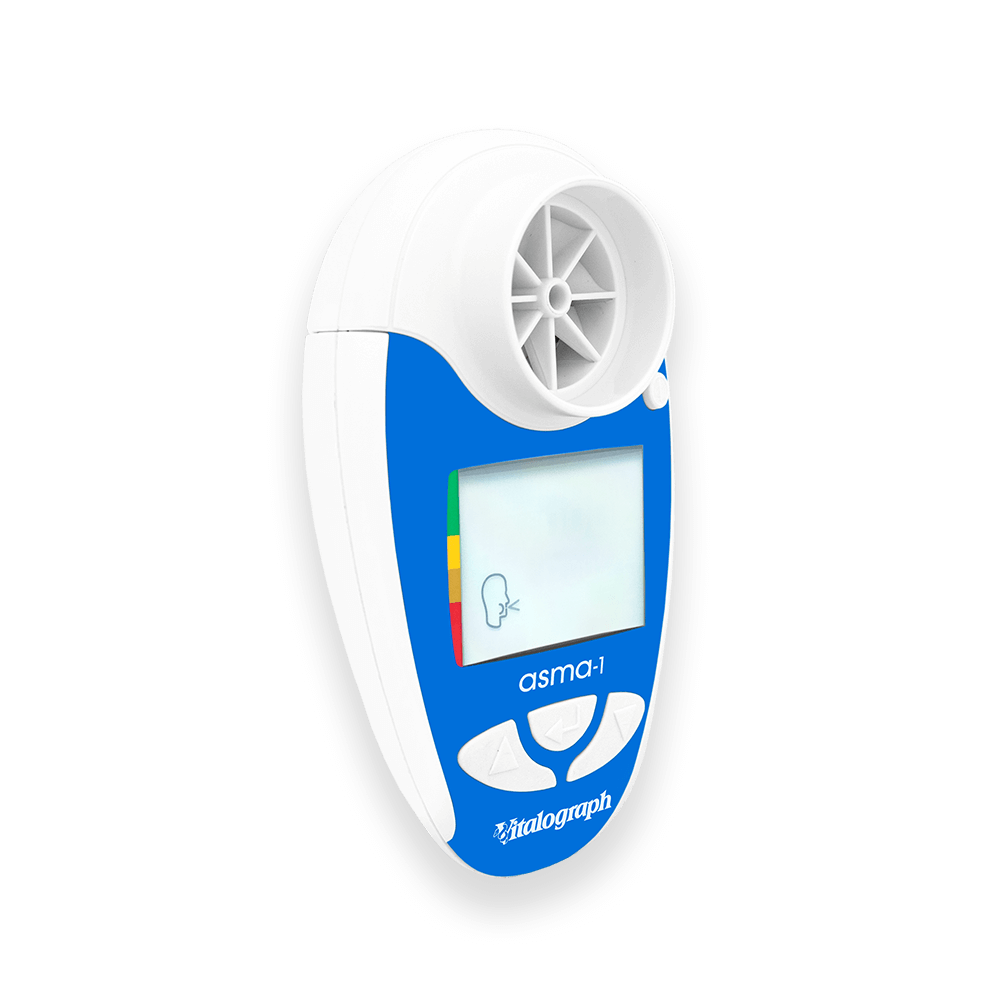

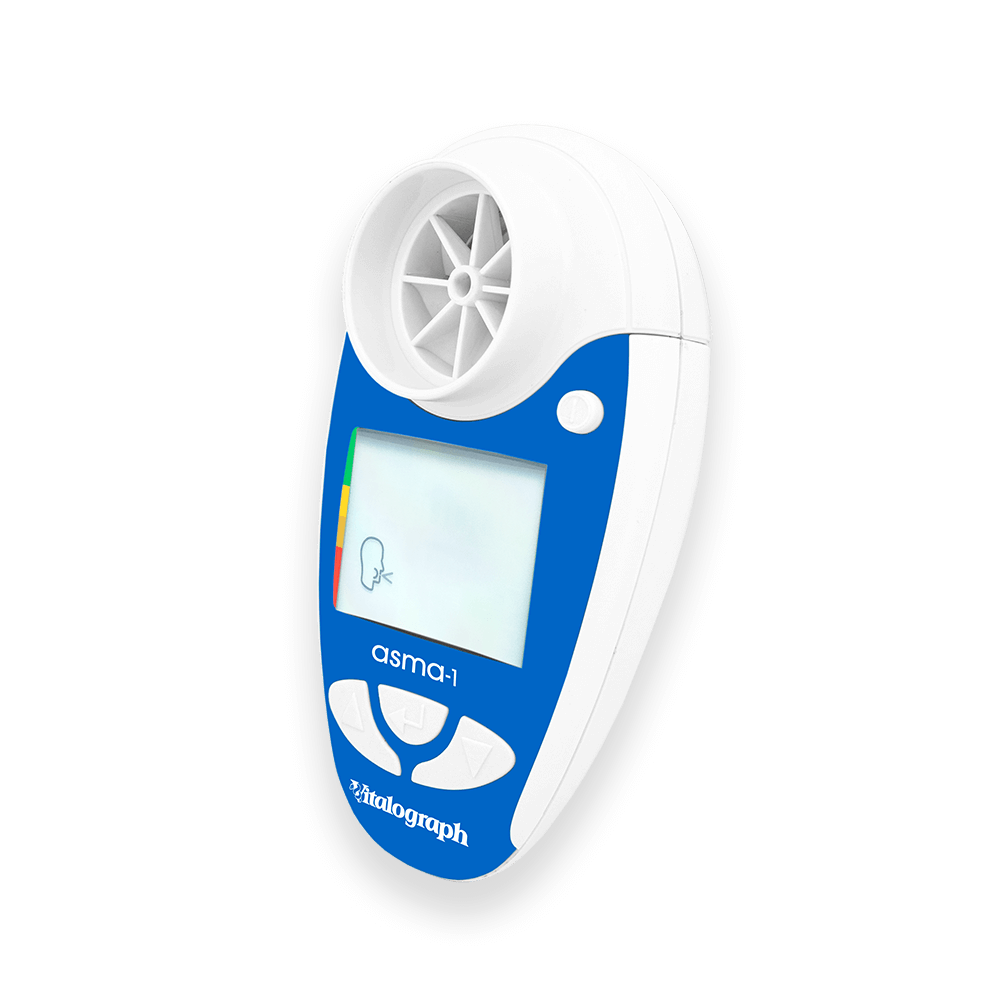

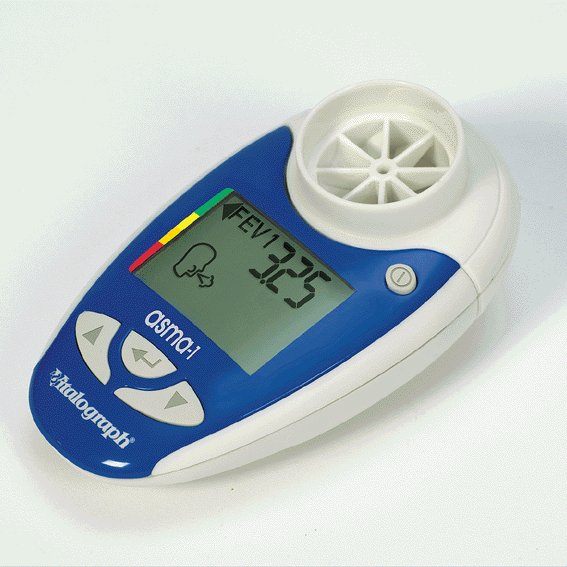

Vitalograph asma-1 Asthma Monitor

40000_ASMA-1_04

Ideal for monitoring PEF and FEV1 at home, work, in clinical trials, in primary or secondary care.

  • The Vitalograph asma-1™ is a lightweight home use electronic respiratory monitor that measures PEF and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.
    • Measures FEV1 and PEF.
    • Electronic record – no need for record cards.
    • Set unique ‘personal best’ zones for test subjects.
    • Automatically stores best values in a test session.
    • Quality of blow indicator.
    • 600 test memory.

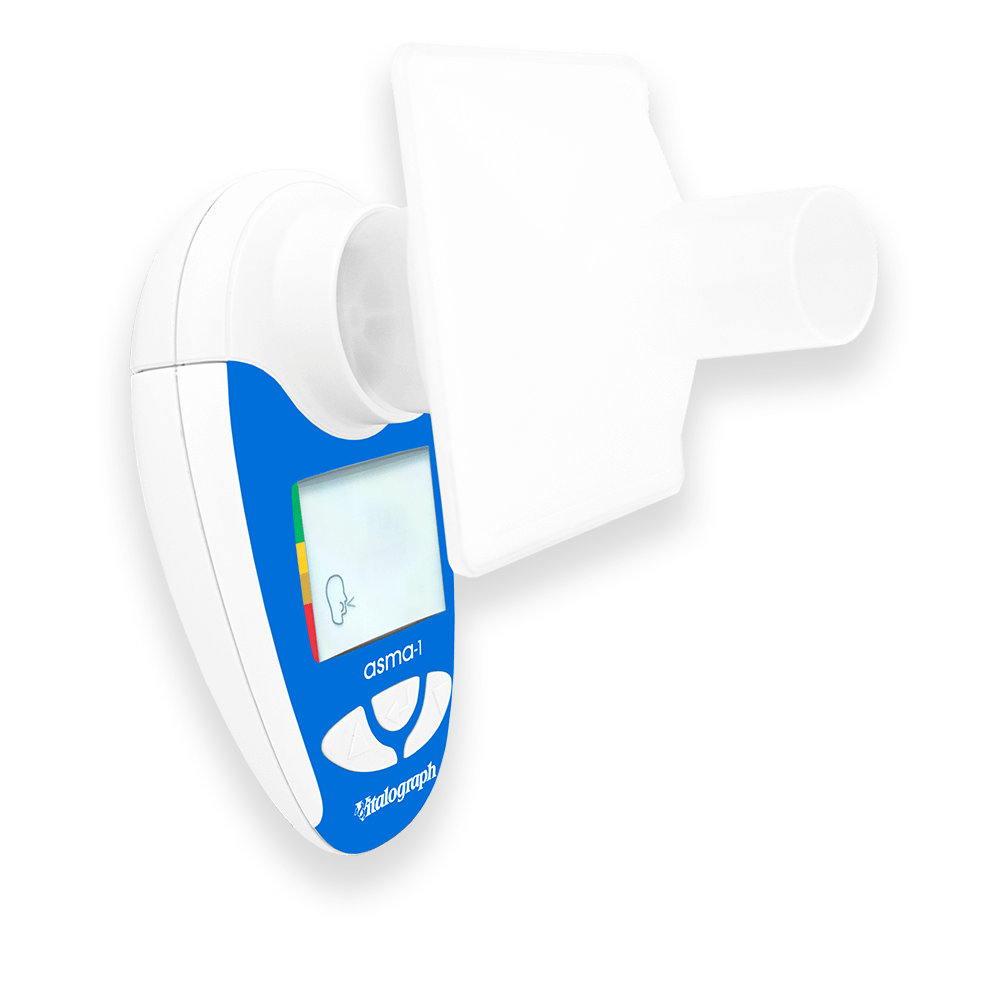

    • Suitable for use in clinic with Bacterial Viral Filters (BVF™).
    • Compliant with ATS/ERS 2019 and ISO 23747 / 26782 / 13485
    • Large, easy to read display.



    One of our 4000 Series of respiratory monitors and screeners, the asma-1 comes with:

    • Pouch
    • Instructions for use
    • 2 x AAA Batteries

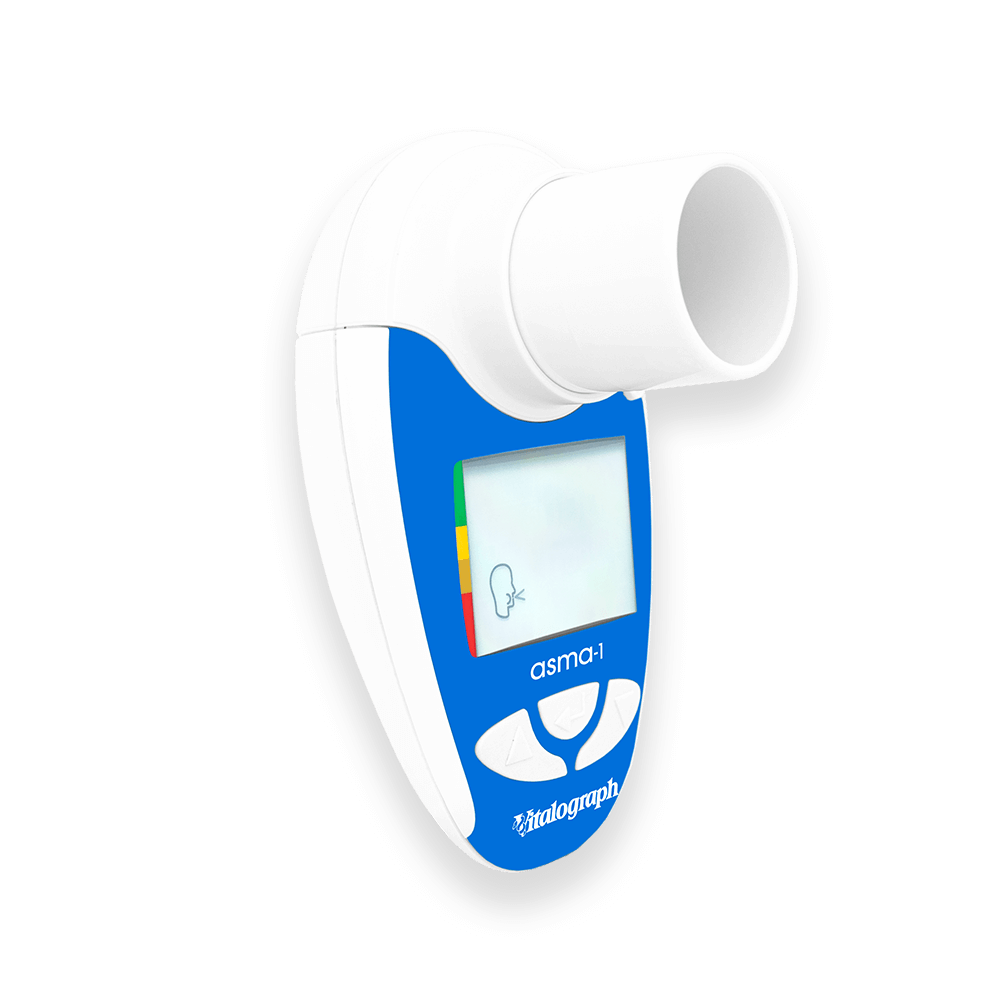

    • Plastic mouthpiece for single patient use

Product Code: 40000

Respiratory Monitor asma-1
Model 4000
Dimensions 109mm (length) x 63mm (width) x 42mm (height)
Flow Detection Principal Stator rotor
Accuracy Better than ± 3% (FEV1)
Back pressure Less than 0.15kPa/L/second @ 14L/s
Measurement Range FEV1: 0 – 9.99 L BTPS
Maximum test duration 6 seconds
Quality Check Slow start of test (Vext>5%) or a cough detected in the first second
Power Supply 3V (2 x 1.5V AAA batteries)
Expected Battery Life 3 months of use at 3 tests per day
Performance standards & guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Auto power down time 2 minutes
  • 28501 Eco BVF (100)
  • 28572 Eco BVF + Disposable Noseclips (80)
  • 40168 Plastic Mouthpiece 4000 Series (20)
  • 20303 Disposable Noseclips (200)
  • 40167 Pouch Spare (x10)
  • 20242 SafeTway Mouthpieces (200)
