Spacelabs Xprezzon Acute Patient Monitor

Xprezzon

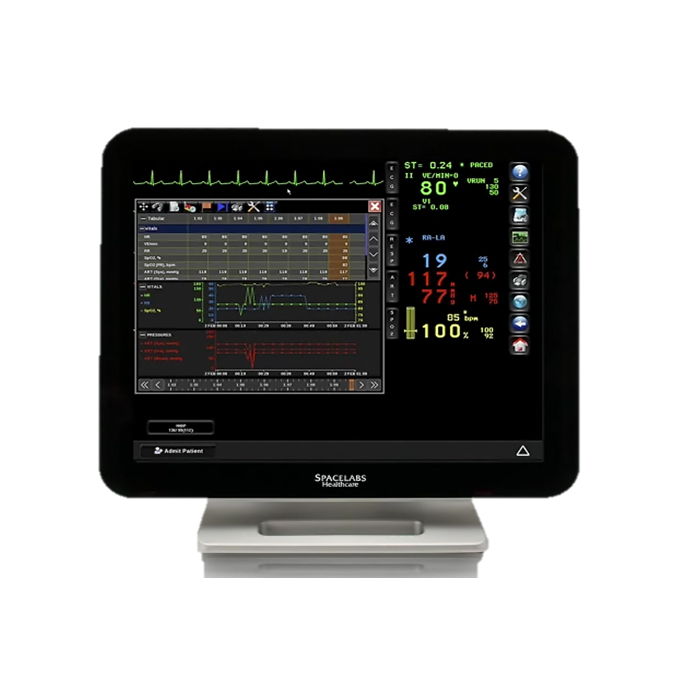

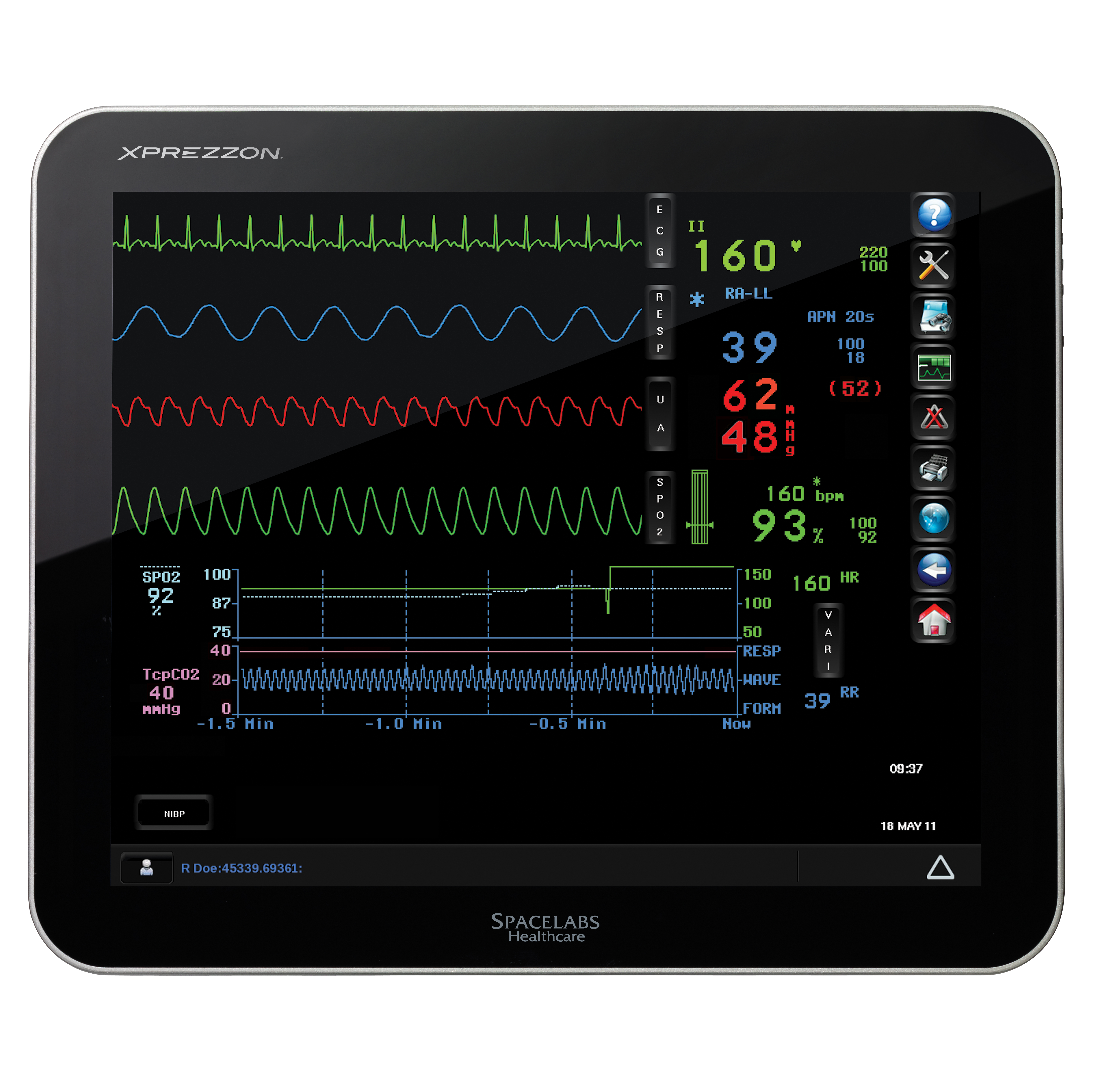

Spacelabs Xprezzon: A high resolution screen displays crisp and visually rich Custom trends which enable faster and better informed patient assessment.

With a single touch, clinicians can access different trend views based on observation needs, type of procedure, or clinical protocols. Trends can be displayed continuously for realtime updates of critical patient information, they can also be sized and arranged as preferred, providing clinicians with their own uniquely customised views.

Your patient’s information in the palm of your hand. Whether inside the hospital or on the go, clinicians can stay connected with their patients.

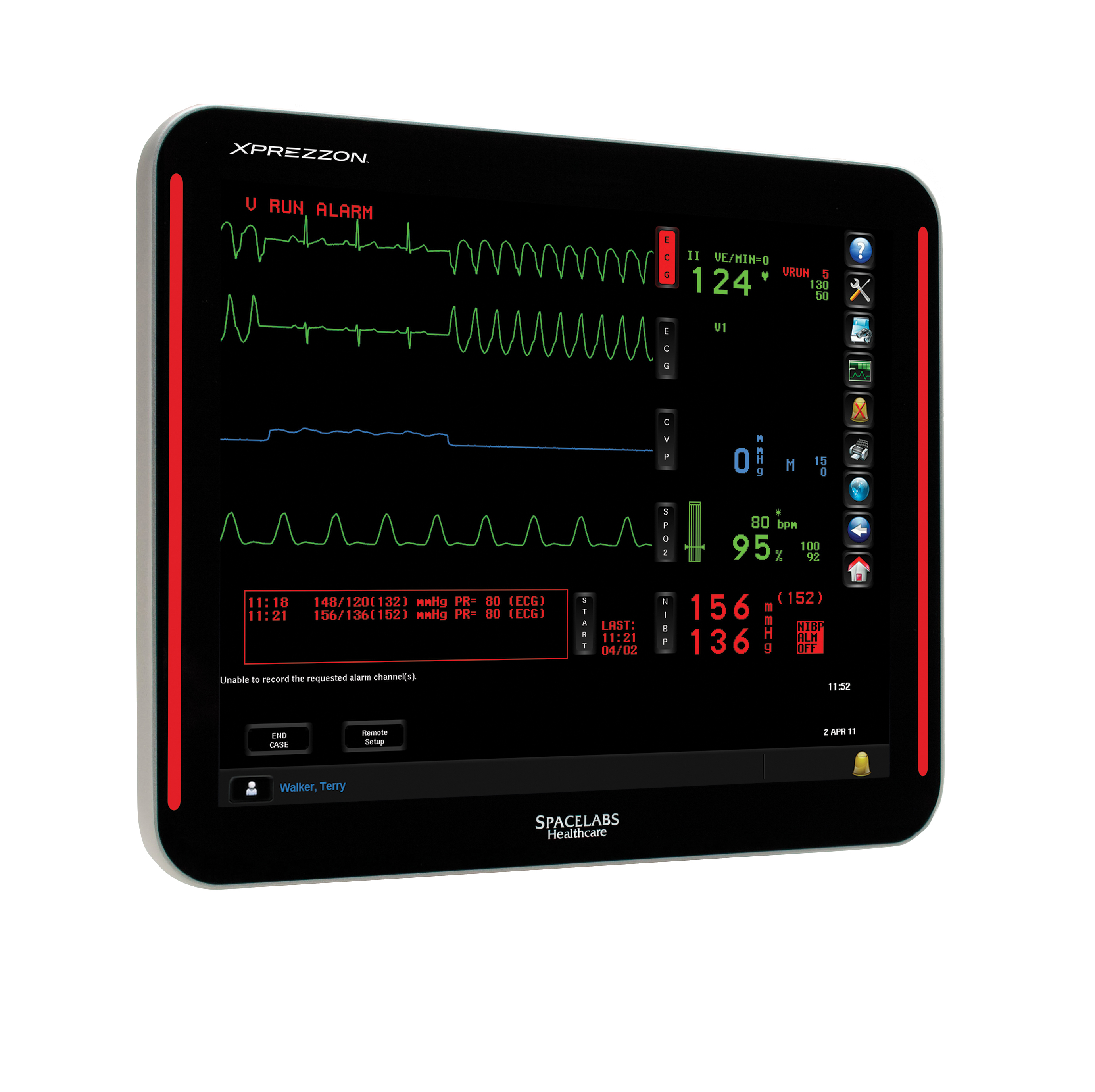

Spacelabs innovative iCS XPReZZ provides the ultimate freedom and confidence – access to patient information on a clinicians mobile device. The sleek, frameless display integrates highly visible led alarm lights. These illuminate in the front and rear, enhancing the clinicians ability to identify which monitor is alarming in the busy care environment.

Product: Spacelabs Xprezzon Bedside Monitor

Part No: 91393

PHYSICAL

  • Dimensions (mm) – 123W x 282H x 331D
  • Weight 4.3 kg

CONNECTORS

  • Equipotential Terminal: rear panel
  • DC Power Input: rear panel
  • Ethernet 10/100 Base T Connection: rear panel
  • Serial Port: rear panel
  • USB Ports (4): front and rear panel
  • Video Output, DVI-I (2): rear panel
  • SDLC Port: rear panel
  • Alarm Relay Output-Nurse Alert: rear panel
  • Built-in Alarm Light (2): front and rear of display
  • Power On/Off key: front

CLASSIFICATION

  • MDD Class IIb
  • EN 60601-1 Class I — Requires outlet with safety ground (Protective Earth) conductor Rated for continuous operation

ELECTRICAL SPECIFICATIONS

  • Mains Power 100 to 240 VAC, 50 to 60 Hz, 3-1.5A

ENVIRONMENTAL REQUIREMENTS

  • Transport and Storage Temperature — -40° to 75° C
  • Humidity — 95% (noncondensing)
  • Altitude — 0 to 12,192 metres
  • Operating Temperature — 10° to 40° C
  • Humidity — 95% (noncondensing)
  • Altitude — 0 to 3,048 metres

ACCESSORIES

Refer to the Spacelabs Healthcare Supplies and Accessories Catalogue for availability of ECG cables, lead wires and electrodes, pressure transducers, temperature probes, cardiac output cables, delivery system, injectate temperature probes, injectate housings, blood pressure cuffs, and SpO2 sensors.





  • Command Modules
  • Capnography Module
  • BISx Module
  • Multigas Module
  • SV02 Module
