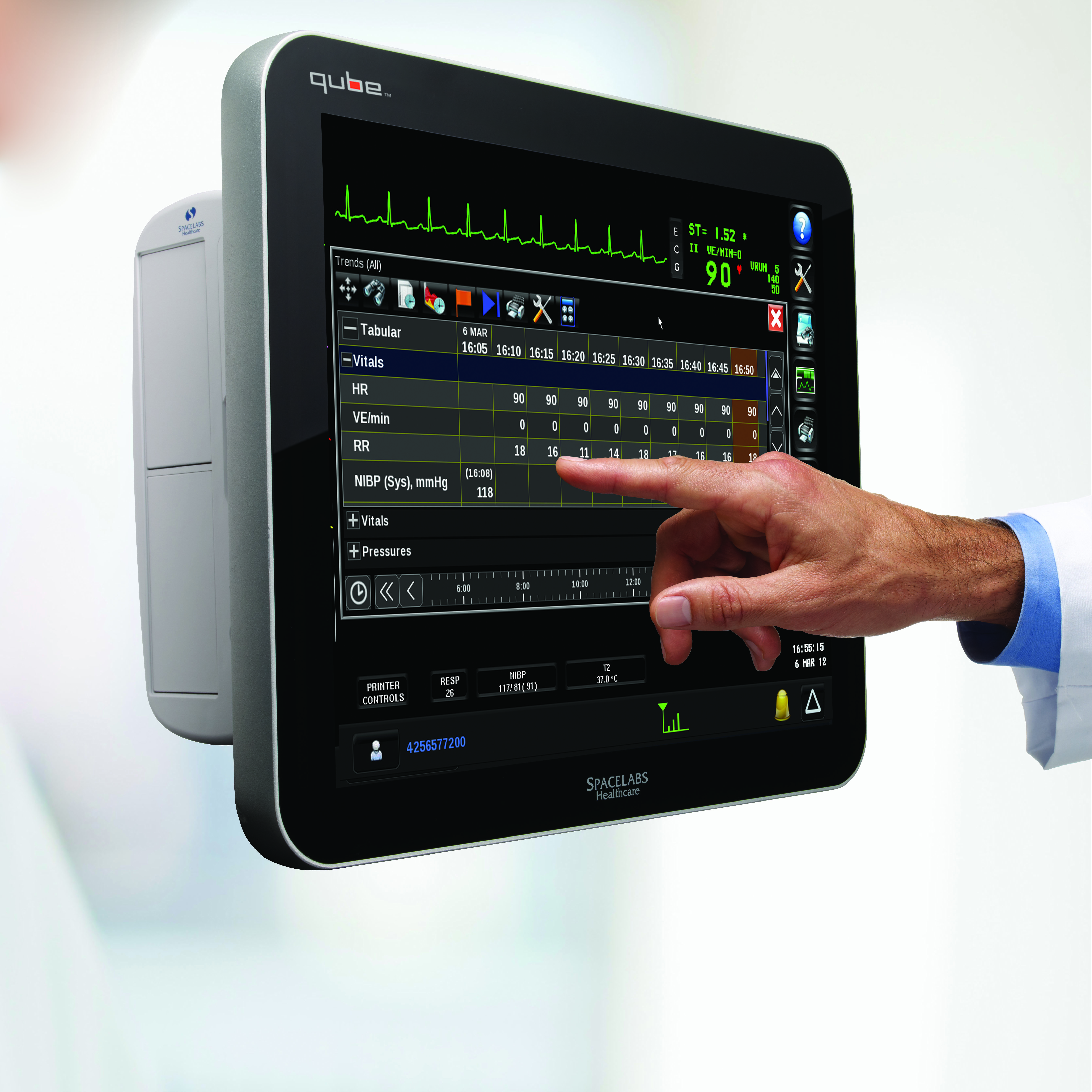

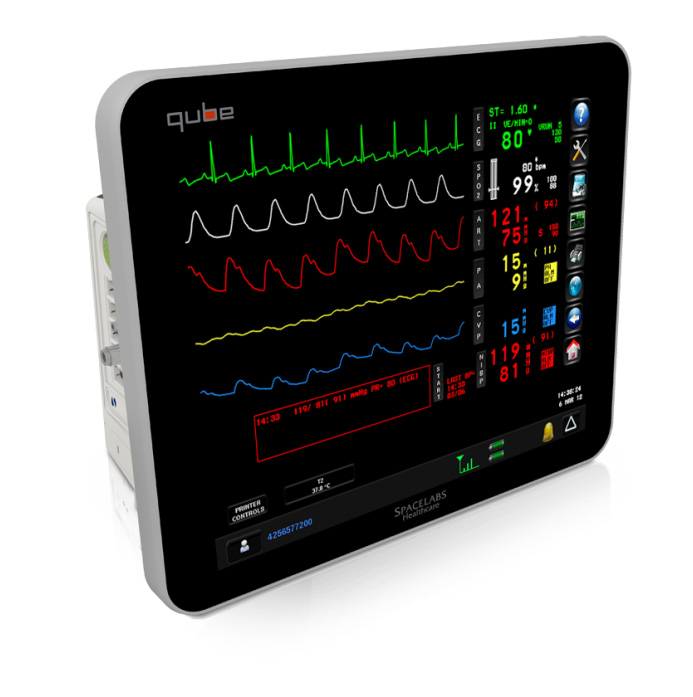

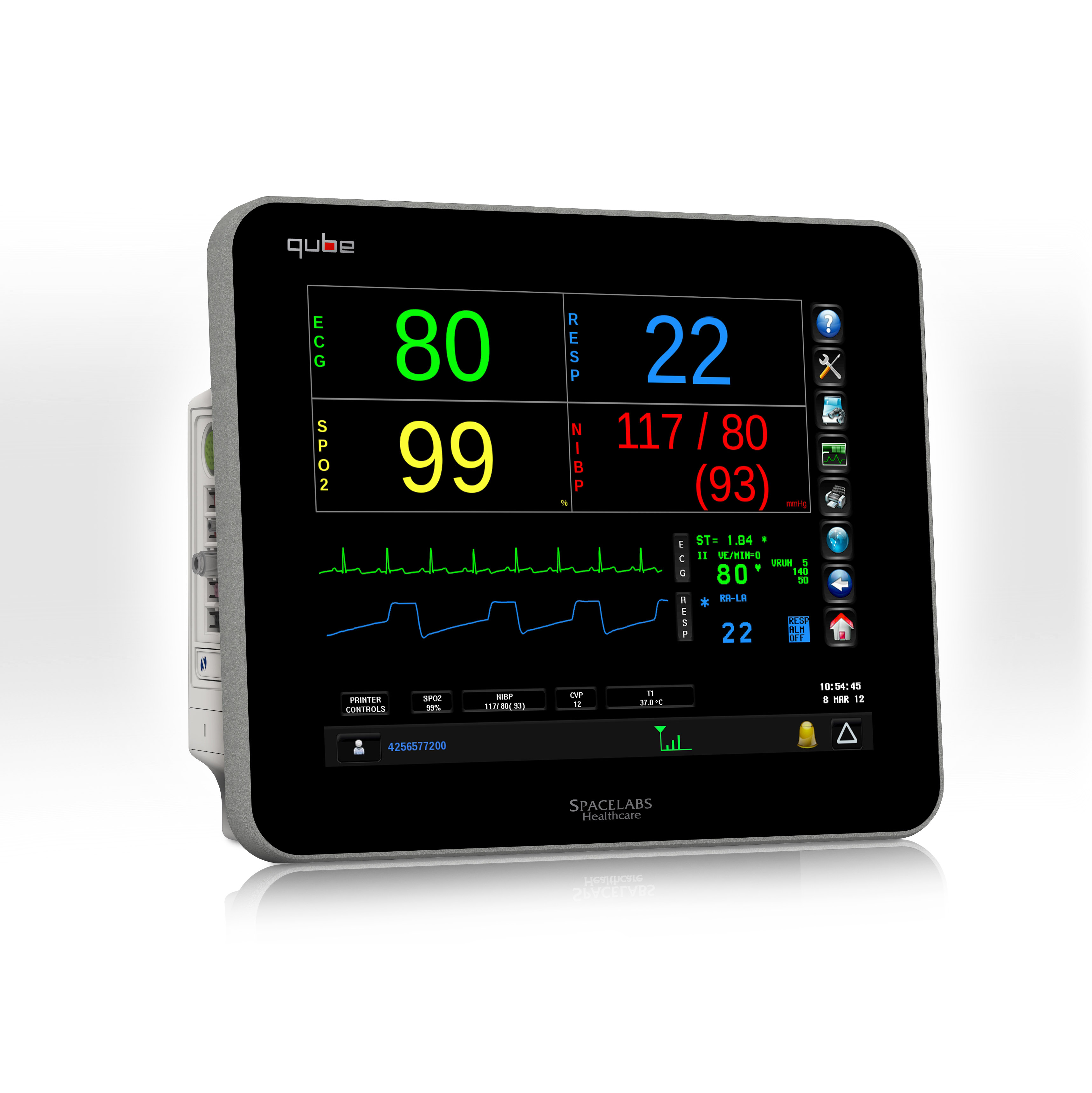

Spacelabs Qube Acute Patient Monitor


Introducing Spacelabs qube.  Inspired by simplicity and style, qube breaks with tradition to offer a fresh, new perspective in compact monitoring.

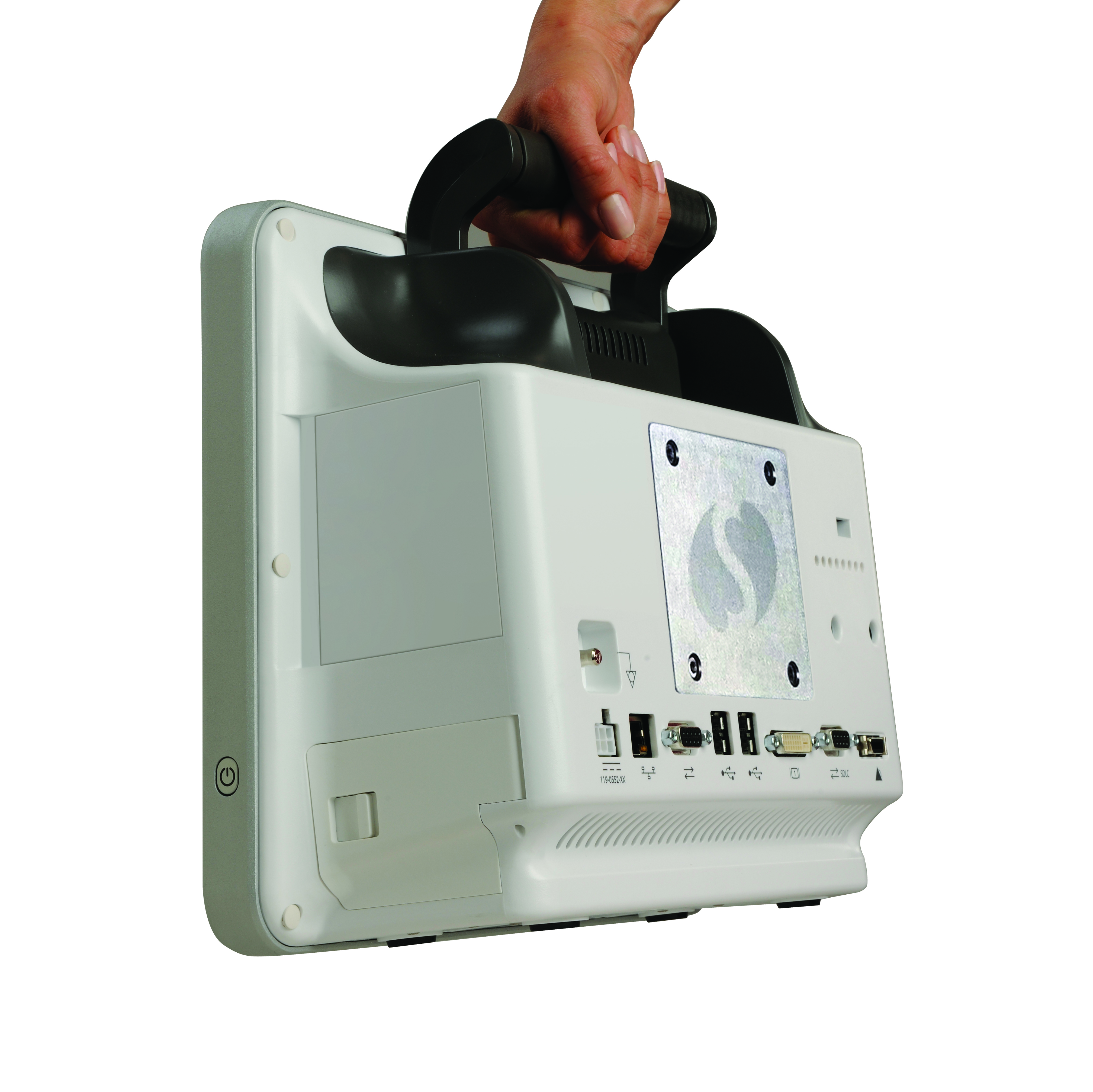

Small and lightweight with a battery life that goes the distance, qube offers portability, accessibility and heightened connectivity perfect for emergency, general, intensive and postanesthesia care units.

Caregivers can access current, critical patient information from bedside throughout transport to provide the ultimate level of patient care.

Product: Spacelabs Qube Patient Monitor

Part No:91390

  • Physical Dimensions – Height 26.2 cm, Width 31.5 cm, Depth 13.2 cm, Weight 4.1 kg
  • Display – Color thin film transistor (TFT), resistive touchscreen liquid crystal display (LCD), Resolution 1024 x 768 pixels, Size – wide 24.6cm, high 18.4cm, Trace Height 4.2 cm, 6cm
  • Printer – Printing Method Thermal array print head, Paper Heat-sensitive paper roll, 50 mm wide x 30 m long; Resolution Eight dots per mm (vertical) and 32 dots per mm (horizontal) at 25 mm per second sweep speed; Prints Manual and automatic alarm recordings for waveforms, vital signs data, trends, calculations, and full annotations are included; Controls Continuous, Stop Recording; Alarm record Records any parameters in an alarm state when alarm recording is active; Indicators Paper out, Unit off; Sweep Speed A variety of speeds are available under module control.
  • Battery life – with 1 battery, 4 hours.  With 2 batteries, 8 hours.

Environmental Requirements

  • Transport and Storage Temperature -25º –  to 60º C
    • Humidity 95% (non-condensing)
    • Altitude 0 to 12,192 meters (0 to 40,000 feet)
  • Operating Temperature 0º to 40º C
    • Humidity 95% (non-condensing)
    • Altitude 0 to 4,572 meters (0 to 15,000 feet)
  • Spacelabs Capno pod
