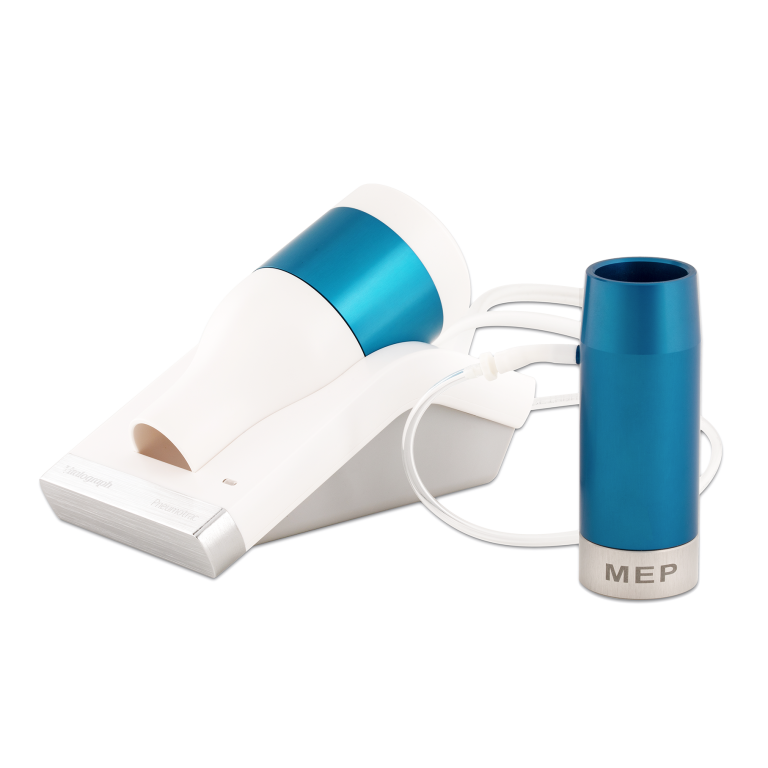

Vitalograph Pneumotrac with RMS

IMG_6728_whitened1-768×768

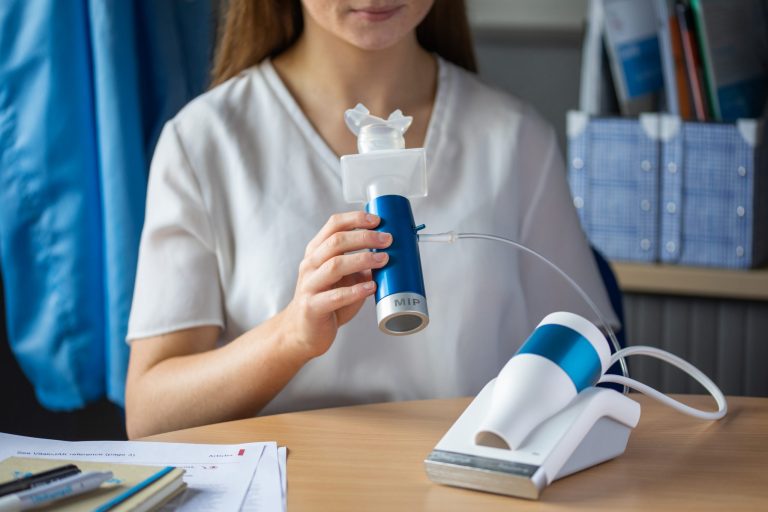

The Pneumotrac™ with RMS (Respiratory Muscle Strength) is a PC-based system that combines Respiratory Muscle Strength measurements and Spirometry – offering multiple testing possibilities on a single device, as portable as your laptop. It can be used in various settings such as in-clinic on a desk or placed on a trolley with a laptop for use at the bedside.

Alongside detailed spirometry testing, it provides a simple approach to mouth pressure and nasal pressure measurements in both adults and paediatrics. It can be used to:

  • assess diaphragmatic weakness in patients with neuromuscular disease (NMD)
  • assess respiratory muscle strength in patients undergoing pulmonary rehabilitation e.g., COPD patients
  • monitor the response of respiratory muscle training

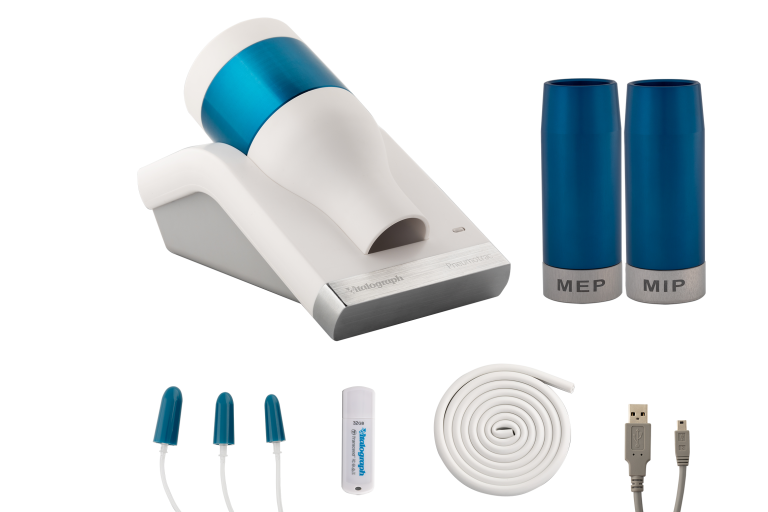

The Pneumotrac with RMS comes with:

  • MIP MEP flowheads
  • Spirotrac 6 Software
  • Protective carry pouch
  • USB cable

Features:

  • Easily Interpreted Results:
    • Overlay of successive curves for consistent results.
    • Multiple options for displaying graphs.
    • Instant test quality feedback as per ATS/ERS guidelines so that the maximum pressure sustained for 1 second can be recorded.
    • Fast evaluation of results with %Predicted comparison.
    • Customisable pdf reports.
    • Monitor historical changes in lung function by comparing results and view trends over time. Trend MIP, MEP, SNIP, and VC on the one chart for a complete history.
  • Onscreen Testing Guidance:
    • Instant test quality feedback as per ATS/ERS guidelines ensuring maximum pressure sustained for 1 second can be recorded.
    • Repeatability feedback for rapid and easy testing.
    • Real-time display of pressure/time curve on Spirotrac 6 software.
  • Exceptional Test Accuracy:
    • Superior resolution of 0.1 cmH20 for MIP, MEP, and SNIP testing.
  • Hygienically Efficient:
    • Low running costs and environmentally friendly: no costly disposable sensors, turbines, or flow tubes.
    • Single-use Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999%, protect device, patient, and operator.

Free 5-Year Warranty with unlimited technical support if registered within 30-days of purchase.

The Pneumotrac with RMS has all the benefits of the market leading Pneumotrac Spirometer with the addition of respiratory muscle strength measurements.



Vitalograph Pneumotrac with RMS
Model Number 6800
MIP MEP SNIP Measurement Range +/- 300 cmH2O
MIP MEP SNIP Accuracy +/- 3%
Resolution 0.1 cmH20
RMS Test Types MIP, MEP, SNIP, PCF
RMS Predicted Sets Wilson, Stefanutti/Uldry/Fitting
Spirometry Test Types VC, FVC, PCF, Post-Bronchodilator
Flow Detection Principal Fleisch flow technology
Volume Accuracy Within ±2.5%
Flow Measurement Range Max. flow rate ±960 L/min (±16 L/s) Min. flow rate ±1.2 L/min (±0.02 L/s)
PEF Accuracy Within ±10%
Back pressure Less than 0.1kPa/L/second @ 14L/s
Performance standards & guidelines ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
Safety standards EN60601-1:2006 + A1:2013, EN 60601-1-2:2015
QA/GMP standards EN ISO 13485, FDA 21 CFR 820, SOR/98-282 JPAL MDSAP
Dimensions 160mm (length) x95mm (width) x 115mm (height)
Weight 550g
Power Supply 5V DC via USB
Spirotrac 6 Software Specification Spirotrac 6 Software
  • 70201 Spirotrac Multi-User Licence
  • 28750 BVF_ Bacterial/Viral Filters (50)
  • 20242 SafeTway Mouthpieces (200)
  • 20201 Cardboard Mouthpieces (200)
  • 20303 Noseclip Disposable (200)
  • 36020 Precision Syringe 3-L
  • 66149 Thermal printer paper (5)
  • 42084 Flow conditioning meshes (10)
