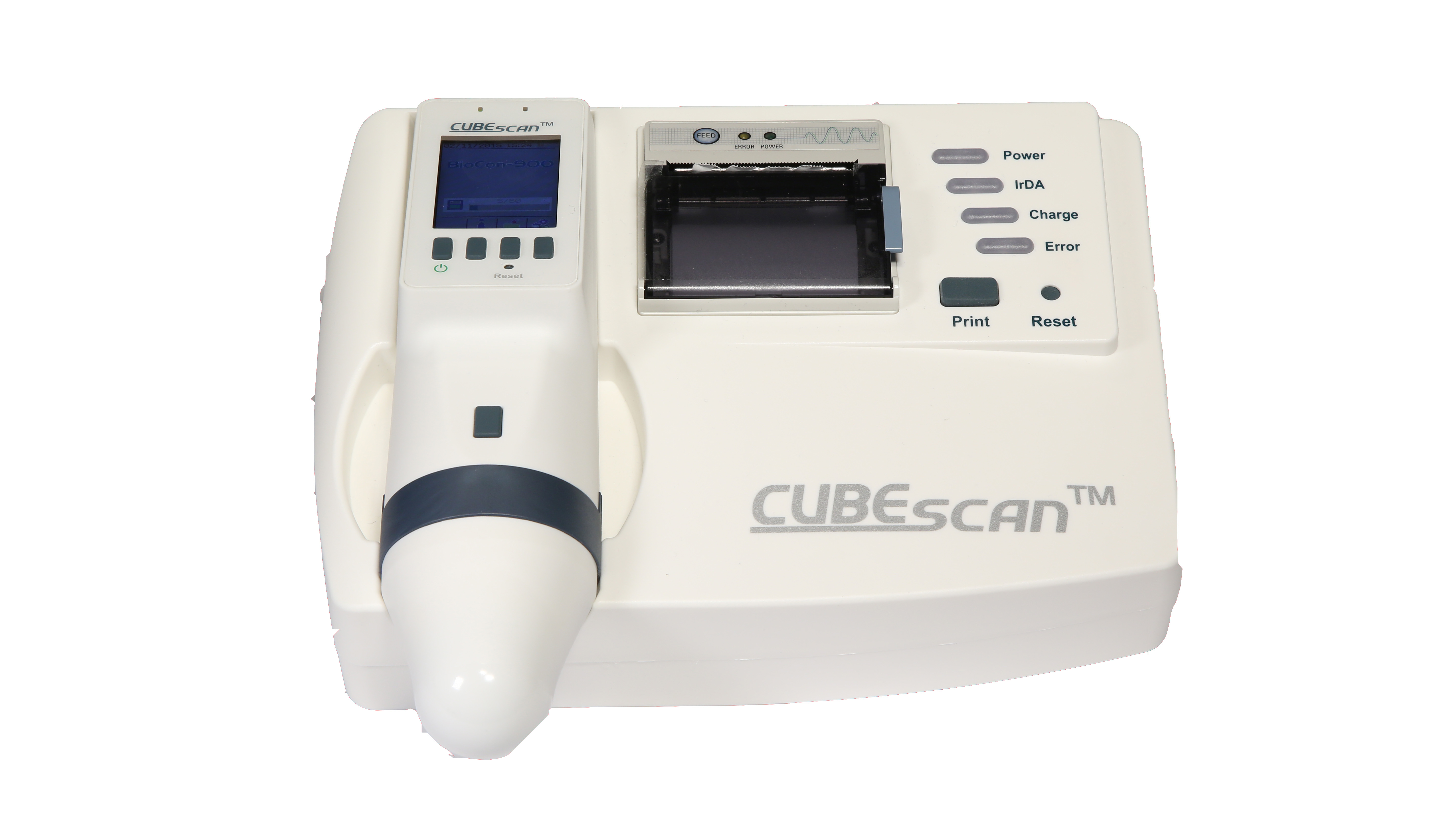

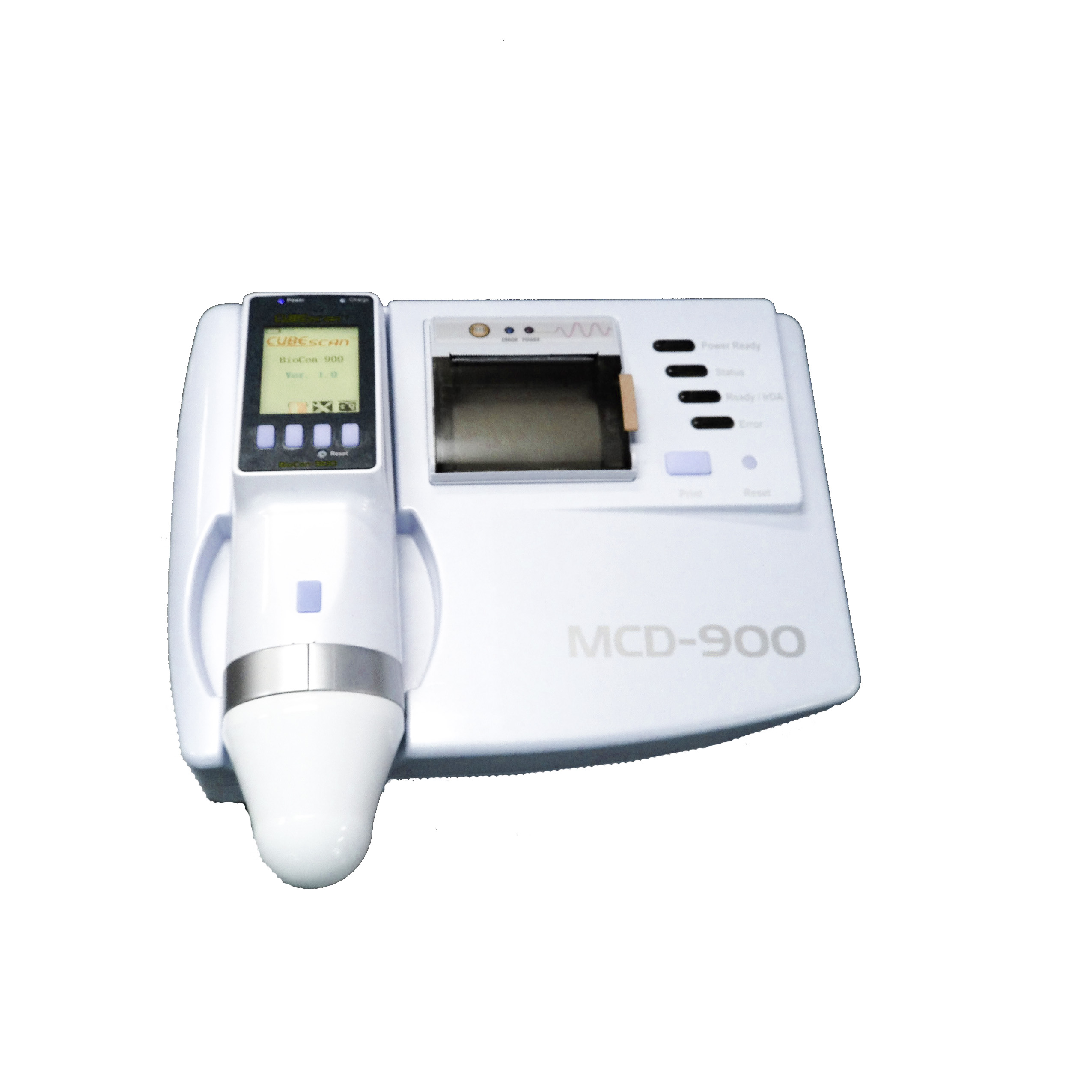

Mcube BioCon-900 Bladder Scanner

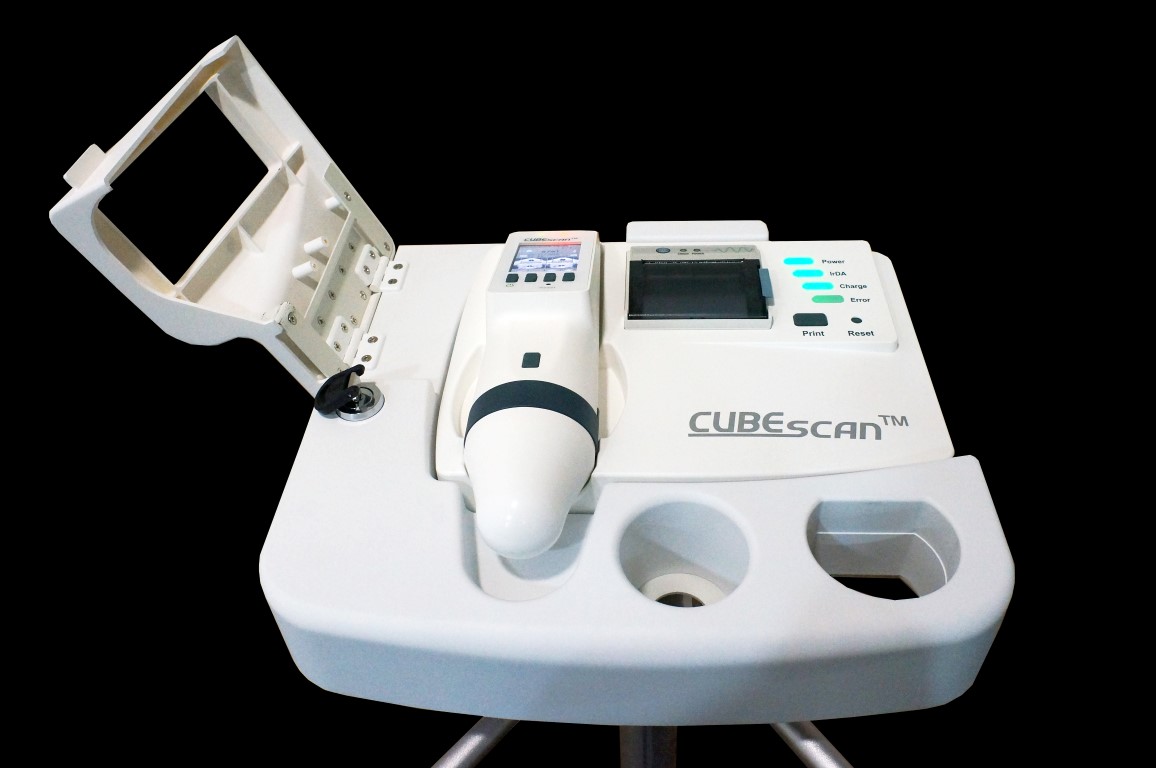

BioCon900 machine (Medium)

The BioCon-900 is the latest release from Mcube, offering a wireless, non-invasive 3D ultrasound system that measures the volume of urine in a patient’s bladder. Watch this space!

The BioCon-900 uses ultrasound signals to determine the bladder’s outline and total volume of urine. The revolutionary real-time Pre-Scan function locates the bladder prior to scanning and improves the accuracy of results.

Immediate printout of results via the internal printer or use the included CubeScan PC software to upload saved data to a computer for later review. 12 Month Warranty

Display: TFT-LCD, 2.4 inch, Format:240 x RGB x 320 stripe

Range: 0-999ml, Accuracy +/- 15ml (0-999ml) [according to the scanning instruction and scanning on an Mcube Tissue-equivalent bladder phantom]

Scan Time: Less than 3 secs

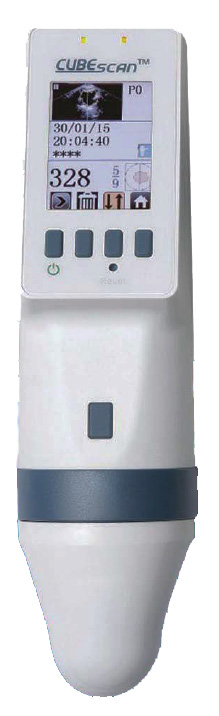

Ultrasound Probe:

  • Dual frequency (2MHz, 3.4 MHz),
  • B-mode scan image,
  • Scan angle: 120 deg,
  • Penetration depth (normal patient) 23cm

Power:

  • Rechargeable Li-ion battery,
  • Nominal voltage: 3.6V,
  • Nominal capacity: 5200mAh,
  • Charging time less than 6 hours,
  • Charged by the docking station,
  • Discharging: approximately 1500 scans [for a new battery module fully charged, tested on Mcube test conditions]

External Interface: IrDA (Infrared Data Association)

Patient ID Input: 1D/2D Barcode scan or image capture

User Interface: Icons and 5 buttons



  • BioCon900 Phantom Bladder Scanner
  • DIA-BLA-0124 BioCon900 Calibration kit
  • DIA-BLA-0122 BioCon900 Probe
  • DIA-BLA-0125 BioCon900 Battery Pack

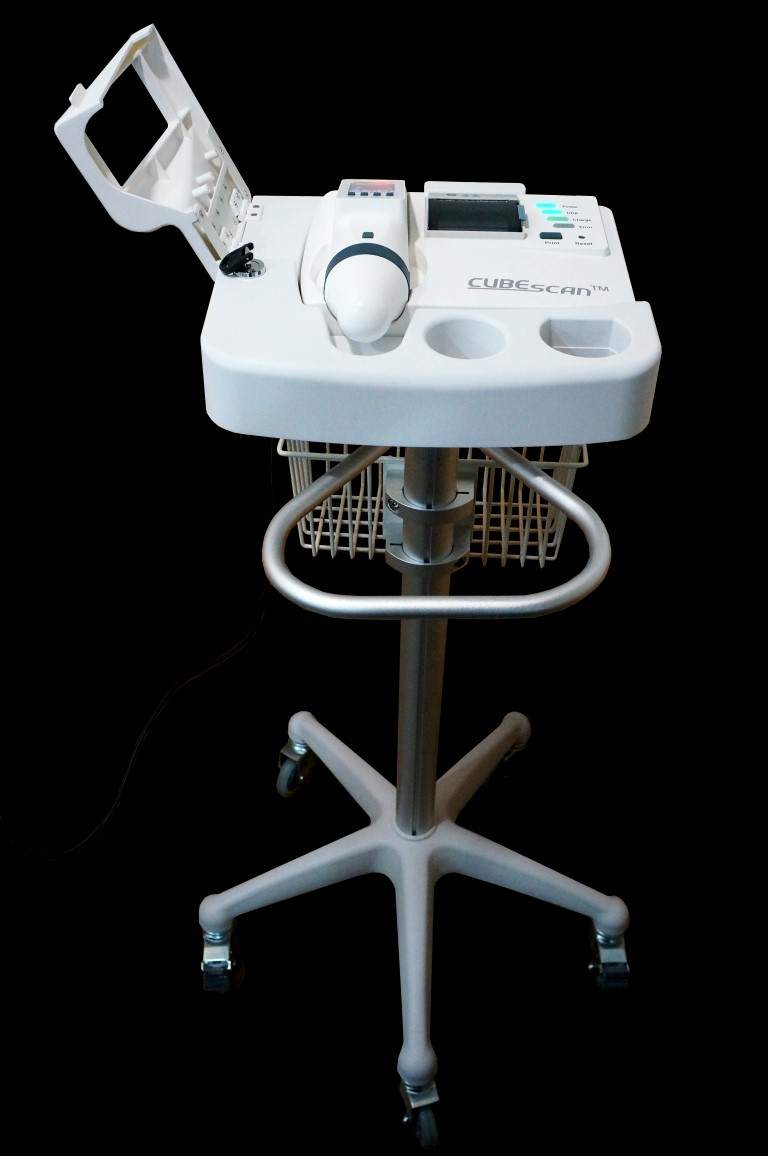

  • DIA-BLA-0132 Biocon-900 Rolling Cart
