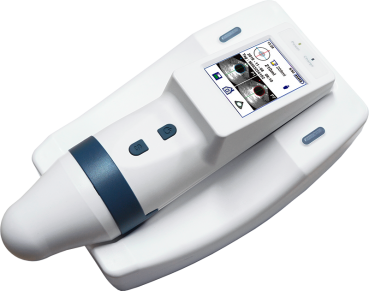

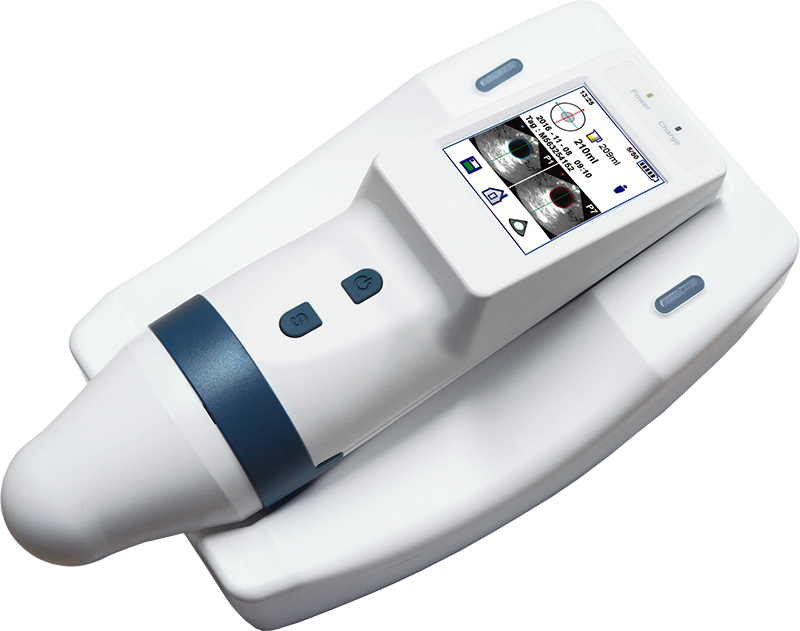

Mcube BioCon-900S Bladder Scanner
The BioCon-900S is a hand-held, non-invasive ultrasound device that measures bladder volume quickly and easily. This compact bladder scanner provides all the functionality you need at a reasonable price.
CUBEscanTM BioCon-900S has a Self-Diagnostic function which enables users to check the functionality of the probe. The revolutionary real-time Pre-Scan function locates the bladder prior to scanning and improves the accuracy of results.
Users can measure even a small amount of volume for children more accurately in child mode.
3 Year Warranty.
Display: TFT-LCD, 2.4 inch, Format:240 x RGB x 320 stripe
Range: 0-999ml, Accuracy +/- 15ml (0-999ml) [according to the scanning instruction and scanning on an Mcube Tissue-equivalent bladder phantom]
Scan Time: Less than 3 secs
Ultrasound Probe:
- Dual frequency (2MHz, 3.4 MHz),
- B-mode scan image,
- Scan angle: 120 deg,
- Penetration depth (normal patient) 23cm
Power:
- Rechargeable Li-ion battery,
- Nominal voltage: 3.6V,
- Nominal capacity: 5200mAh,
- Charging time less than 6 hours,
- Charged by the docking station,
- Discharging: approximately 1500 scans [for a new battery module fully charged, tested on Mcube test conditions]
External Interface: IrDA (Infrared Data Association)
Optional Patient ID Input: 1D/2D Barcode scan or image capture
User Interface: Icons and 2 buttons plus Touch Screen
- DIA-BLA-0228 BioCon 900S Phantom Bladder
- DIA-BLA-0226 BioCon 900S Calibration kit
- DIA-BLA-0170 BioCon 900S Battery Pack
- DIA-BLA-0220 BioCon 900S Rolling cart with basket
