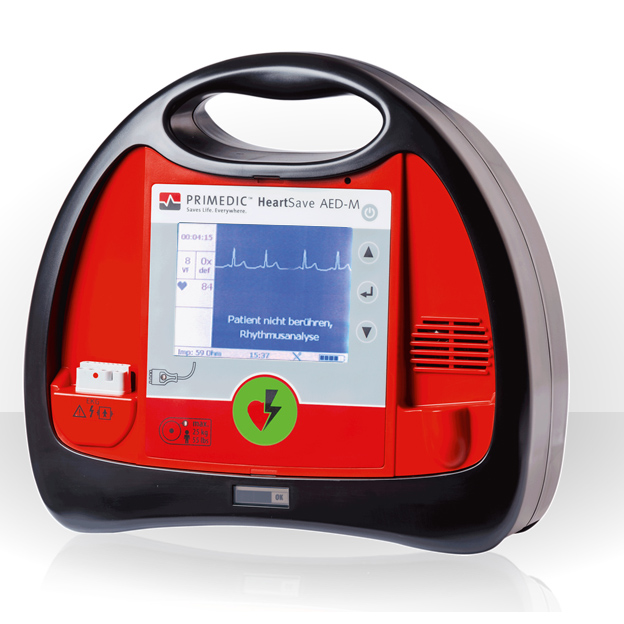

Primedic HeartSave AED-M Defibrillator

HeartSave-AED-M

Spacelabs Heartsave AED-M Defibrillator, for use by professionals.  In ad­di­ti­on to the ad­van­ta­ges of the AED, the AED-M is equip­ped with a mo­ni­tor for dis­play­ing ac­tion time, ECG curve, heart rate, de­tec­ted VF as well de­fi­bril­la­ti­ons ge­ne­ra­ted and BLS in­struc­tions.

The high-re­so­lu­ti­on mo­ni­tor en­su­res that the de­vice can also be used under dif­fi­cult con­di­ti­ons.  A separate ECG cable and standard ECG electrodes can also be used to provide cost-effective monitoring.

  • Voice prompts in four lan­gua­ges
  • Freely selectable language packs
  • Com­pact Flash Card, ECG Viewer
  • 6-ye­ar li­thi­um bat­te­ry

An extended range of defibrillators for professional use is also available.

Product: Spacelabs Primedic HeartSave AED-M Defibrillator – for professional use

Part No: 97581

  • Defibrillation
    • Impulse shape: biphasic, current-controlled impulses, external (CCD)
    • Energy: 50 – 360 J according to patient impedance
    • Analysis time: 7 – 12 s
    • Asystole threshold < 200 μV
    • Artefact detection
    • Pacemaker detection
    • Pediatric Mode: Pediatric button or Savepads Mini
  • ECG
    • Derivation: Einthoven II
    • Patient resistance: 23 – 200 Ohm
    • Heart rate: 30 – 300 per min.
  • Monitor
    • Model: LCD, blue mode
    • Dimensions: 95 x 72mm (diagonal 120mm)
    • Resolution: 320 x 240 pixels
    • Battery Capacity Display
    • Speed: 25mm/s
    • Sensitivity: 10mm/mV
    • User Information: Language instructions, heart rate, number of defibrillations, ECG curve, number of deteted VF/VT, total resuscitation time
  • Disposable electrodes
    • Adhesive Electrodes (hands free)
    • Electrode connection: Pre-connected
    • Shelf life: 36 months
    • Cable length: according to the model between 1,3 m and 2,0 m
    • Active electrode surface: 174 cm² overall
    • Storage Conditions: 0°C to 50°C
  • Data management
    • Removable memory: CompactFlash (CF) card 2GB
    • Data/voice recording: approx. 24 h data and voice recording
    • Voice recording can be activated/deactivated
    • Read out software (CD): Patient, data system, and voice recording
  • Power supply
    • Battery 6
    • Model: LiMnO2
    • Voltage: 15 V
    • Capacity (nominal): 2.8 Ah
    • Service life: 6 years
    • Discharges/shocks: 200@360J
    • AkuPak LITE
    • Model: LiFePO4
    • Capacity (nominal): 2.3Ah
    • Discharges/Shocks: 150@200J
    • Monitoring: 5h
    • Charge time: Approx 3 hours
    • Accessories: Clip charger for Accupac
  • Environmental conditions
    • Operating condition: 0°C … 55°C (30…95% rel. humidity without condensation, 700 … 1060 hPa)
    • Storage conditions: -20°C … +70°C (20…95% rel. humidity without condensation, 500 … 1060 hPa)
  • Resuscitation guidelines
    • guidelines 2010 (ERC/AHA) at factory
  • Protection Class
    •  IP55
  • Dimensions
    • Height x Width x Depth 25 cm x 28 cm x 9 cm
    • Weight without power supply: approx 2.0KG
    • Weight incl. power supply : approx. 2.5 kg
  • Standard Scope of Delivery
    • 1 HeartSave AED-M, 1 AkuPak LITE or battery, 1 pair SavePads AED, 1 SaveCard, 1 ECG Viewer
