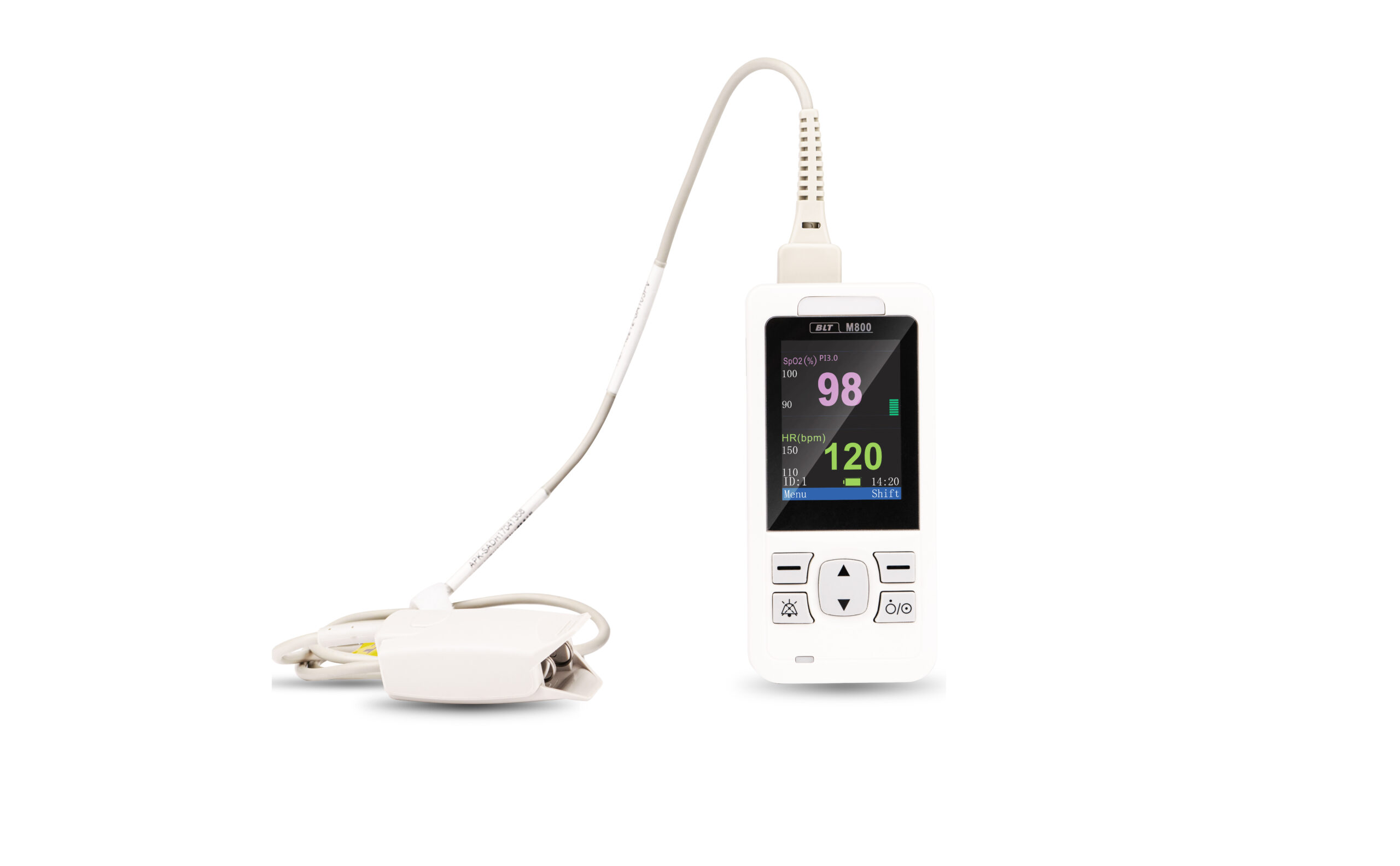

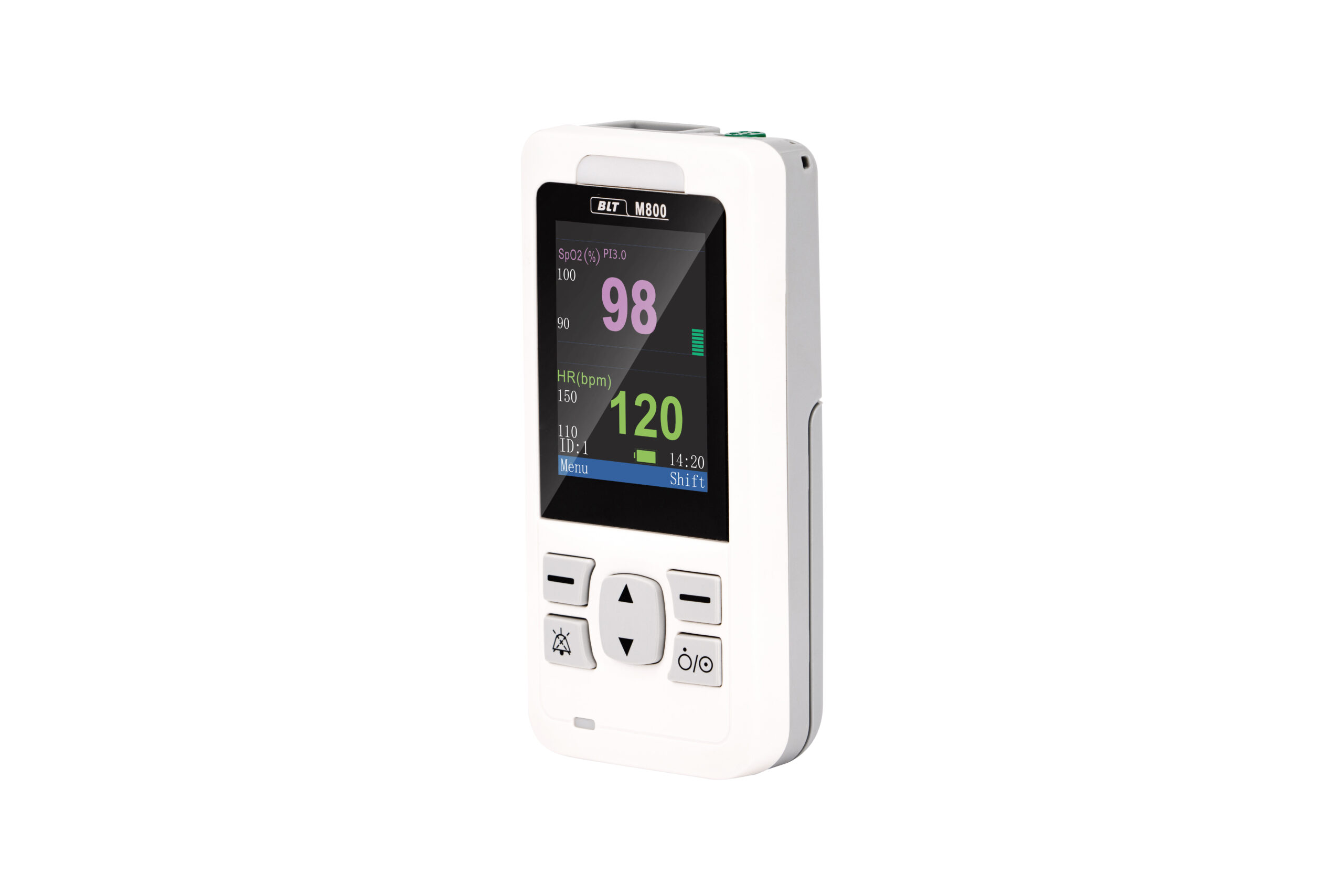

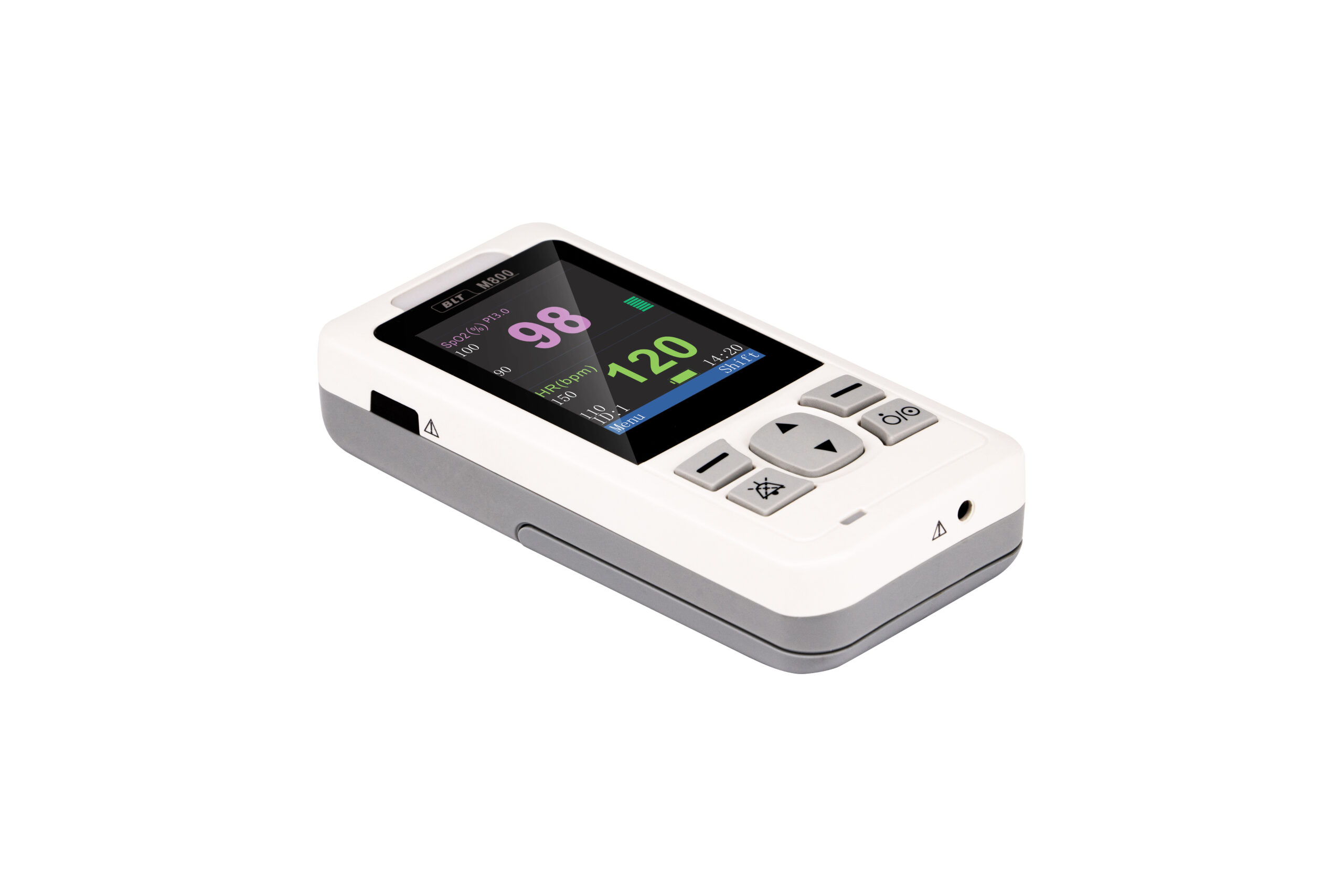

Biolight M800 Handheld Pulse Oximeter
A compact and easy to use Handheld Pulse Oximeter. The M800 has a 2.4″ high resolution colour screen, 6 simple buttons and alarms.
Features
- Monitoring parameter: SpO2,PR(Standard), Nellcor SpO2(Optional), ECG,RR(Optional)
- Portable, easy to carry
- 2.4”color TFT display with auto rotation function
- Selectable layout modes including font and waveforms
- Dual work modes: continuous monitoring & spot check
- Adjustable audio and visual alarms
- Large data storage capacity up to 300 groups per ID
- 3x AA batteries or rechargeable battery with charger stand(optional)
- Suitable for adult, pediatric and neonate
- Apply to hospital, clinic and home
Physical Specifications:
Mainframe weight: <400g (full configuration, including the batteries)
Mainframe size: 58.5mm(W)×123mm(H)×28mm(D)
Environmental Specifications:
Temperature: Operating: 5℃ to +40℃
Storage: -20℃ to +55℃
Atmospheric: Operating: 700hPa to 1060hPa pressure Storage: 500hPa to 1060hPa
Humidity: Operating: 15% to 85%(non condensing)
Storage: 10% to 93%(non condensing)
Charging Specifications
AC-DC Adapter(Optinal): Input: 100～240VAC, 50/60Hz , 0.5A
Output: 5V, 1.5A
Battery Specification:
Type: 1.5V, AA alkaline battery
Capacity: 2000mAh
Quantity: 3
Run time: >14 hours
Shutdown delay: 10 min(After the first “low battery” alarm)
Display
Size: 2.4 inch
Resolution: 320*240 pixels
Indicating Lamp
Alarm indicating 1amp:(Yellow/Red)
Battery charging indicating lamp: 1（orange）(When charged, it lights orange. When fully charged or not charged, it doesn’t light.)
Data Storage
Displaying way: Trend tabular
Trend interval: 10 seconds to 30 minutes
Trend parameter: HR, SpO2
Trend data:
Spot-check: ID from 1 to 99, 300 groups per ID.
Continuous: ID is 0, 30000 groups can be stored.
Standard Configuration: SpO2, PR, PI
Option: Nellcor SpO2, ECG, RR
BLT SpO2
Measurement range: 0~100%
Resolution: 1%
Accuracy: 70~100%：± 2% 0% to 69%: unspecified
Refreshing rate: <13 seconds
Pitch Tone: with
PR
Measurement range: 25 bpm ~250 bpm
Resolution: 1 bpm
Accuracy: ±1% or ±1 bpm, whichever is the greater
Refreshing rate: <13 seconds
Nellcor SpO2 (Optional)
Measurement range: 0%~100%
Resolution: 1%
Accuracy: 70% ~100% : ±2% ~±3% 0% to 69%: unspecified
Refreshing rate: 7 seconds
Pitch Tone: with
PR
Measurement range: 20 bpm ~300 bpm
Resolution: 1 bpm
Accuracy: 20 bpm～250 bpm: ± 3 bpm 251 bpm～300 bpm: unspecified
Refreshing rate: 7 seconds
