seca mBCA Alpha

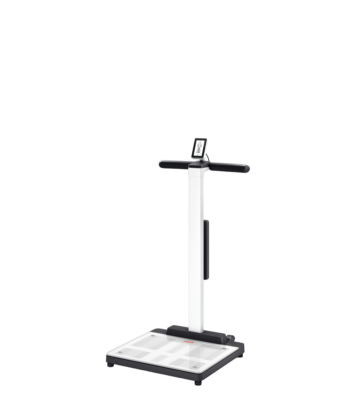

seca_mBCA_Alpha_555_554_545_long_shot_to_the_left (3)

seca mBCA Alpha – medical Body Composition Analyzer Validated Against Gold Standards

Get a clinically validated assessment of your patient’s body composition—in just seconds. With clear, easy-to-understand visuals and meaningful metrics like skeletal muscle mass, visceral fat, and phase angle, you gain the insights you need to guide therapy, tailor interventions, and make informed decisions far beyond BMI and guesswork.

Comprehensive medical validation against gold standard methods

  • Measurement takes only 24 seconds – seamlessly integrates into your practice
  • Simple follow-up measurements for effective therapy monitoring
  • Immediate results accessible via browser and patient app
  • Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)
  • Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
  • Cloud-based software with easily understandable graphics

The Key to Proactive Patient Management

The seca mBCA Alpha sets a new benchmark in clinical body composition analysis. Its muscle mass readings are validated against whole-body MRI, and fat mass is benchmarked using the 4-compartment model, both gold standard in body composition analysis. seca’s validation process covers a wide range of patient groups –including children, adults over65, individuals with a BMI over30 kg/m², and diverse ethnic backgrounds. This comprehensive scientific foundation ensures your results are not just accurate, but clinically meaningful – backed by peer-reviewed research and ready to support your decisions

Graphical representations fuel motivation

The illustrative graphics and courses not only provide the doctor or nutritionists with a quick orientation for its therapeutic measures. They also fuel the motivation of patients who have to lose weight for health reasons. While the scale shows no change because the fat reduction is concealed by muscle growth, the seca mBCA Alpha detects the reduced fat mass and shows the successes. The representation of body composition ensures a better understanding of therapeutic measures and thus a higher therapy compliance.

Product: seca mBCA Alpha (medical Body Composition Analyzer)

Part No: ON IGM ANT NN

Accuracy

+ Muscle Mass: 97% accuracy compared to whole-body MRI

+ Fat-Free Mass: 98% accuracy compared to 4c model

+ Total Body Water: 98% accuracy compared to deuterium dilution

+ Extracellular Water: 95% accuracy compared to NaBr dilution

Technical specifications

+ Medical Device: Medical Device Regulation (MDR) certified

+ BIA measuring method: 8-point Bioelectrical Impedance Analysis
+ BIA measuring frequency: 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
+ BIA measurement segments: Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
+ BIA measuring electricity: 100 µA
+ BIA measuring period: 24 seconds
+ Age range: 5-99 years
+ Body Height: > 130 cm
+ Software: seca analytics 125
+ Capacity: 300 kg
+ Graduation: 50 g
+ Dimensions: (WxHxD) 600x 1,233 x 653 mm
+ Net Weight: 20.8 kg

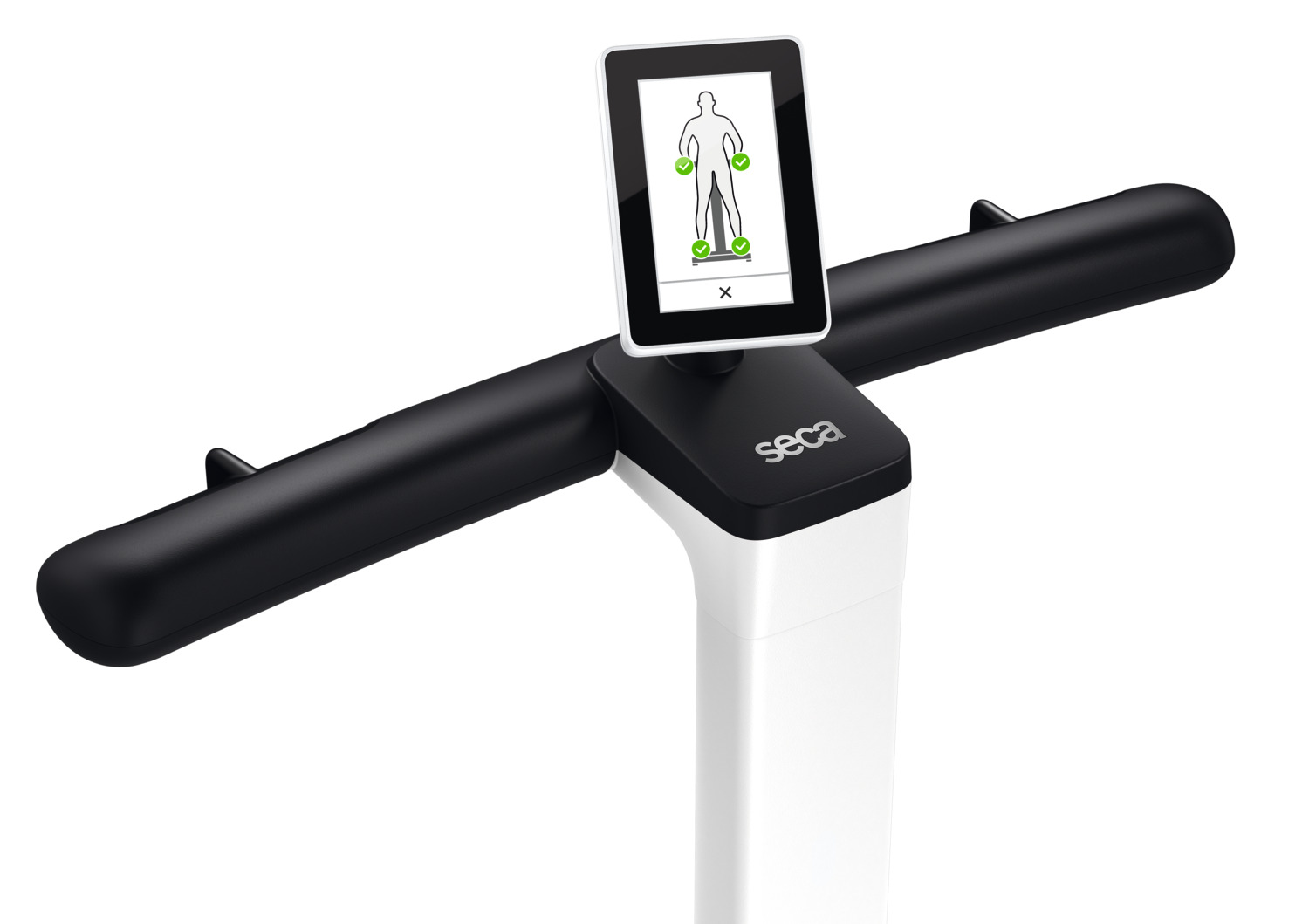

+ Display: 4.3″ tiltable and rotatable touchscreen
+ Power supply: Power adapter
+ Interfaces Ethernet: Ethernet, USB for barcode scanner, Wi-Fi

Accessories

+ Barcode scanner mount seca 463
+ Barcode scanner seca 473

  • Barcode scanner mount seca 463
  • Barcode scanner seca 473
