Riester RCS-100 Medical Camera System

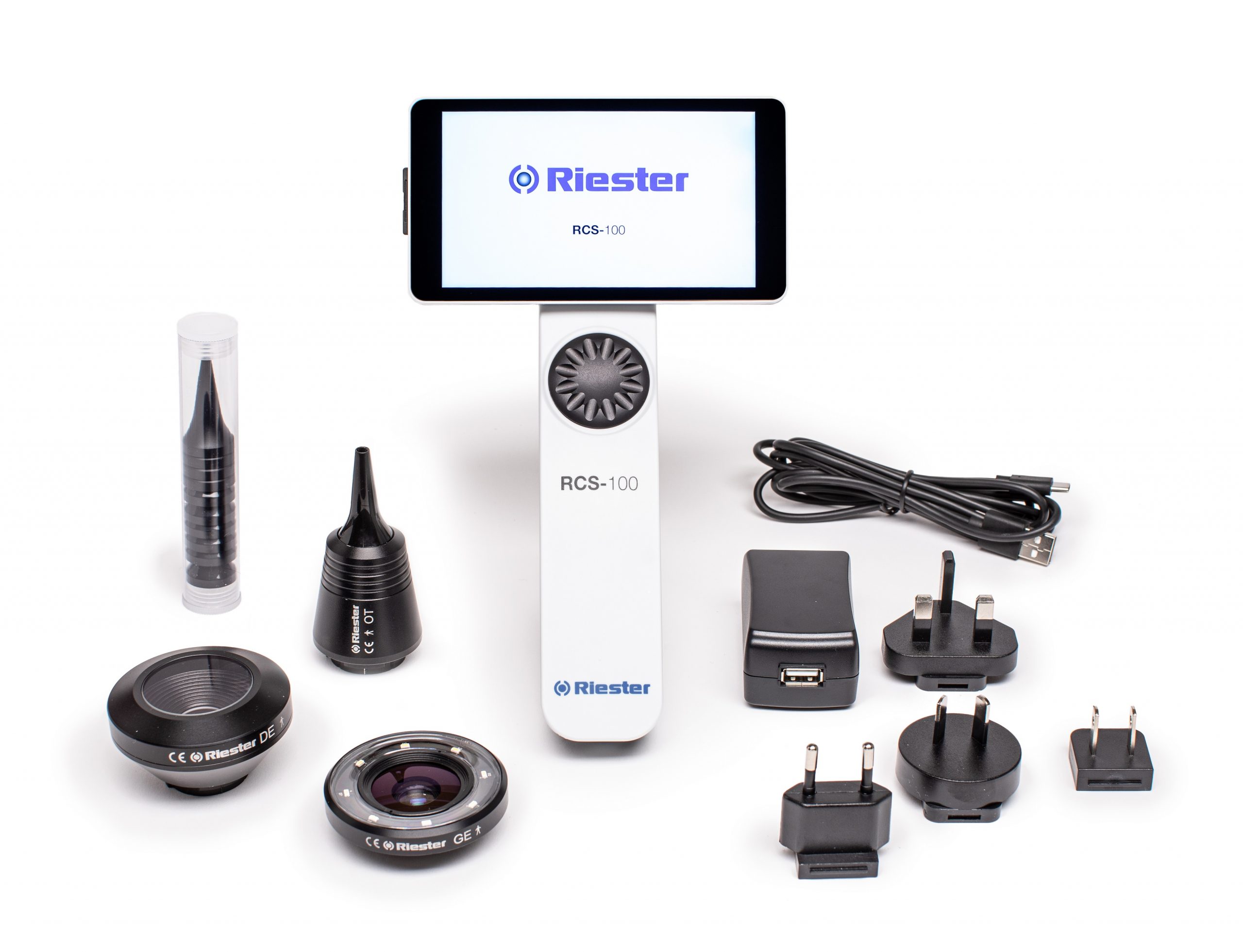

RVS-100 pack otoscope lenses medium

Digital, portable and multifunctional medical camera system

With the RCS-100, Riester introduces a new generation of a digital medical camera system with a full range of lenses. RCS-100 is available with an otoscope, general and dermatoscope lens.

RCS-100 allows accurate first diagnosis and planning of consistent follow-up treatment.

  • Dimensions: 225 mm x 135 mm x 45 mm (8.86 in x 5.31 in x 1.77 in)
  • Weight: 292 g (10.3 oz)
  • Power supply: rechargeable Li-ion battery
  • 5” full HD colour TFT-LCD display, including scratch proof cover 1.280×720 Pixel
  • Touch screen, very easy to use
  • Rotary wheel allows easy one-hand operation
  • 16 GB internal memory
  • 3.5 hours operating time in video mode
  • Bayonet connector for attachable optic modules for fast & easy change of lenses
  • Image and video function
  • Focus settings: automatic (otoscope/general lens), manual (all lenses)
  • RCS-100 user interface available in different languages: english, german, french, spanish, italian, russian, chinese, arabic)
  • New patient to be added via UI, info saved in name of picture / video file
  • Power adapter incl. country plugs (EU, US, UK, Australia)
  • Charging time: 3 hours

Imaging

  • 8 MPixel CMOS for high resolution and a scaleable image
  • Image format: JPEG
  • Video format: H.264
  • Resolution: Full HD true 3264 x 2448 Pixel

Connectivity

  • Micro USB 2.0, cable length min. 180cm
  • UVC function (to be activated via UI on camera) allows live picture display on 2nd screen in parallel
  • WiFi SD card (16GB) optionally available

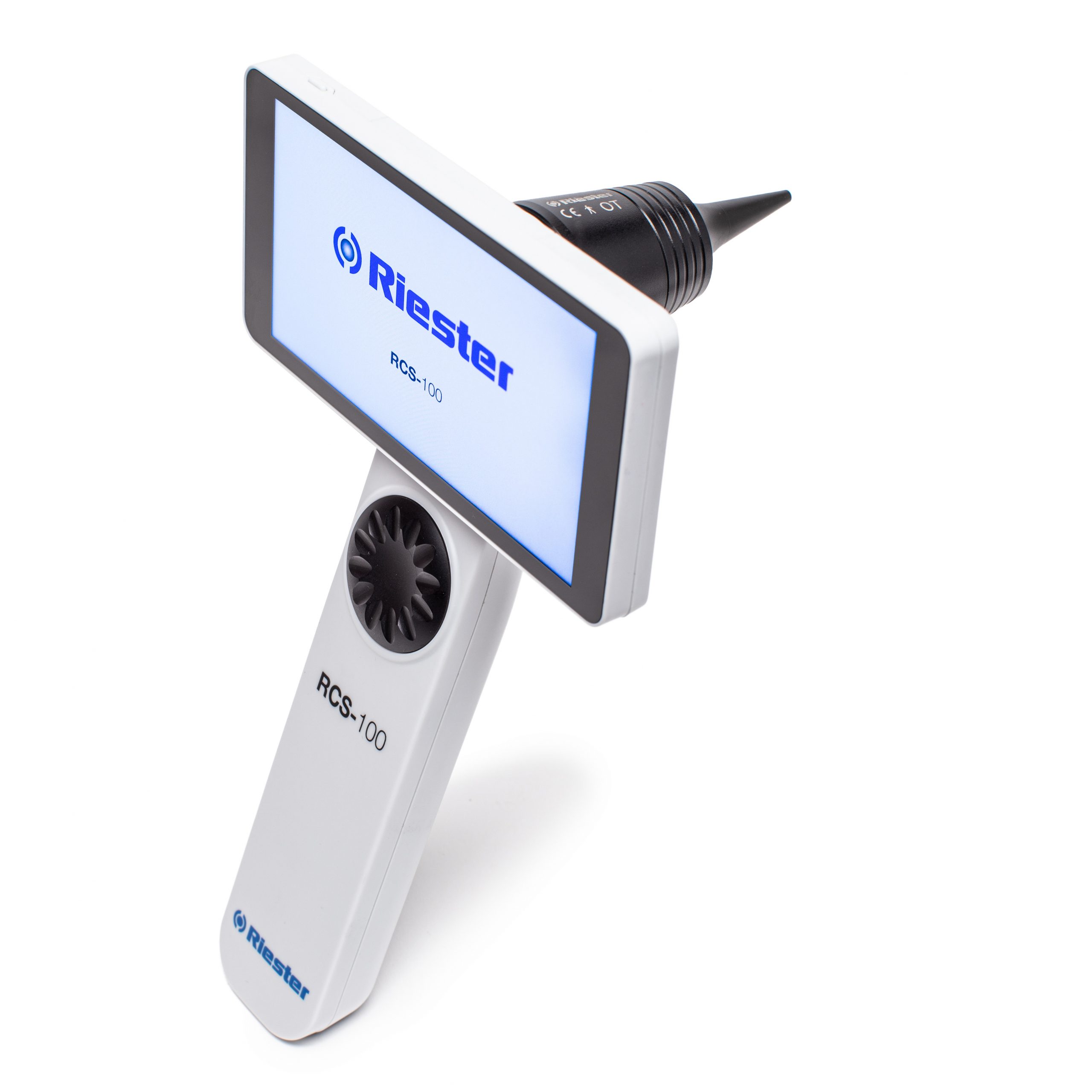

Features of otoscope lens

  • Enhanced view of auditory canal
  • Magnification on display: 6x
  • 12mm Ø field of view at 25mm distance from viewing object (with 4mm specula size)
  • 9mm Ø field of view at 15mm distance from viewing object (with 4mm specula size)
  • 8mm Ø field of view at 10mm distance from viewing object (with 4mm specula size)
  • Disposable and reusable specula mm (in): 2 (0.08), 3 (0.12), 4 (0.16), 5 (0.2)
  • Light source: visible white LED
  • LED colour temperature: 4000K
  • Focus range: 8-25 mm (0.31-0.98 in)
  • Resolution: 8 MP CMOS
  • Air channel for pneumatic test (compatible with existing Riester connector)
  • Dimensions: 73.5 mm x 40 mm x 40 mm (1.57 in x 1.57 in x 1.57 in)
  • Weight: 96g (3.40 oz)

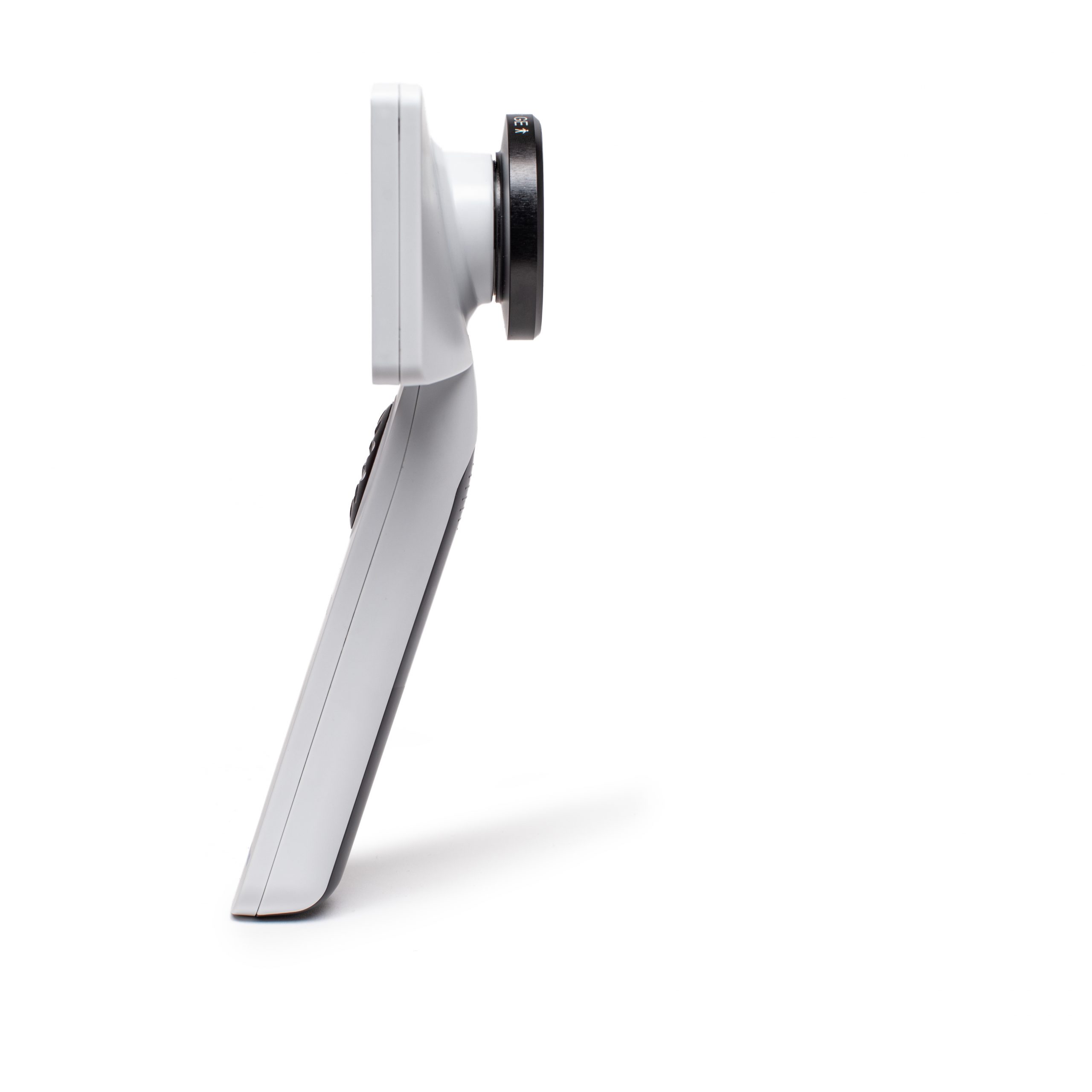

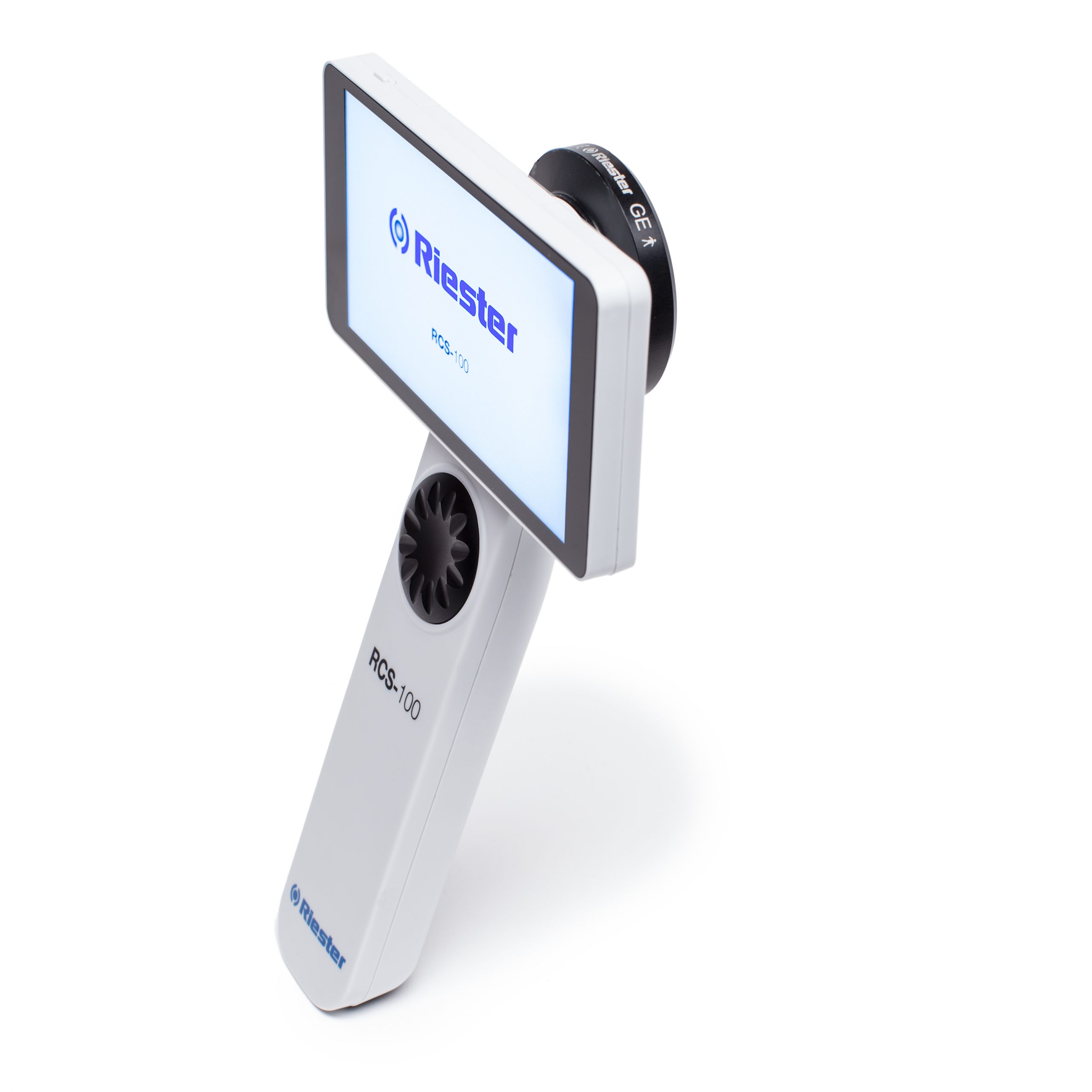

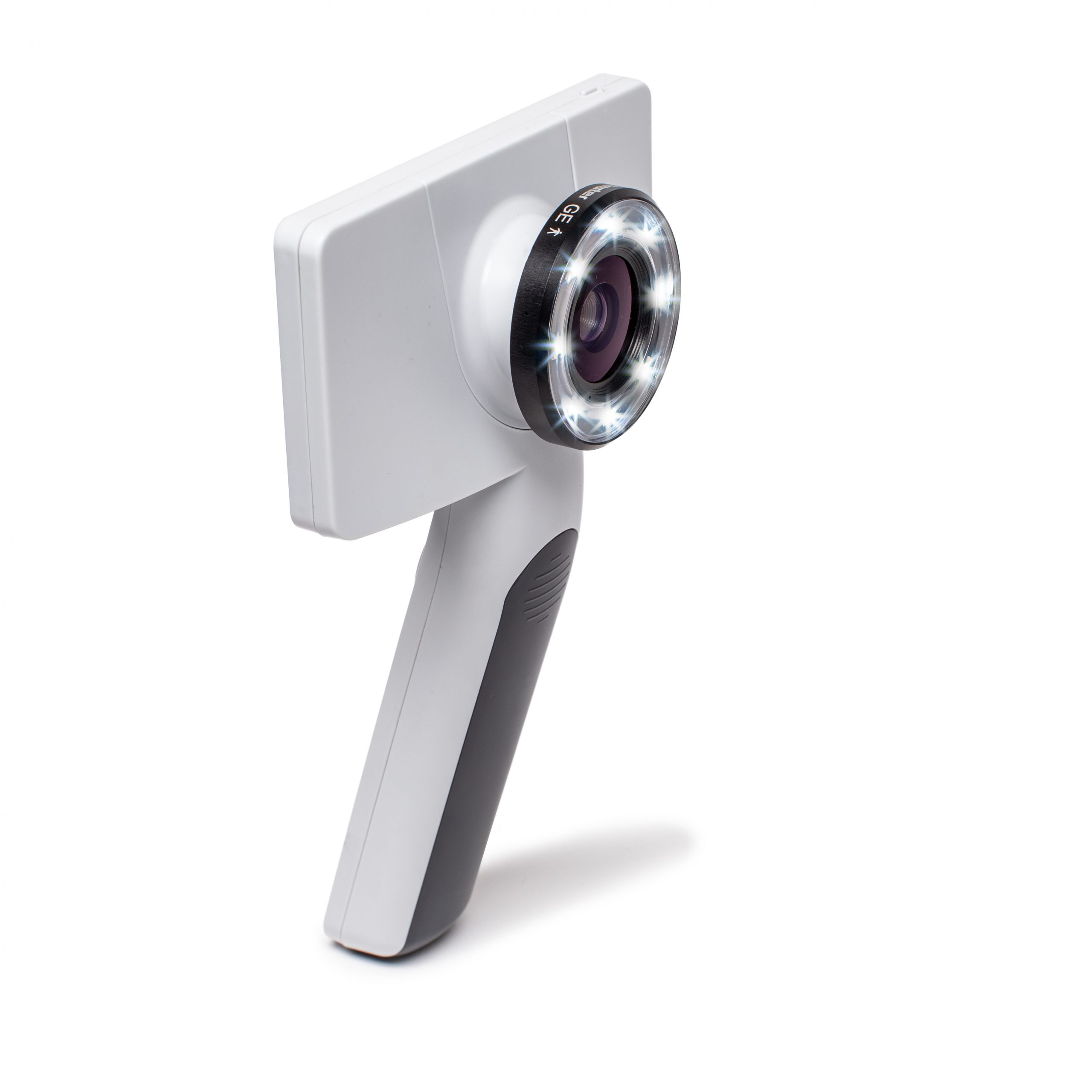

Features of general lens

  • Light source: visible white LED
  • LED colour temperature: 5.500K
  • Focus range mm (in): 30-4000 mm (1.18 – 157.48 in)
  • Resolution: 8 MP CMOS
  • Display magnification at 30mm object distance: 1x-4x
  • Field of view: 78°
  • Optical magnification: 2x
  • Digital magnification: 4x
  • Dimensions: 60.5 mm x 60.5 mm x 19 mm (23.82 in x 23.82 in x 0.75 in)
  • Weight: 66.4g (2.34 oz)

Features of dermatoscope lens

  • Accurate identification and measurement of skin lesions
  • No immersion necessary
  • Light source: visible white LED
  • LED colour temperature: 4000K
  • Field of view: 30 mm Ø (1.18 in Ø)
  • Resolution: 8 MP CMOS
  • Digital movable ruler
  • Optical magnification: 2x (from optics)
  • Digital magnificaton: 4x (on top)
  • Displayed magnification: 2x – 8x
  • Dimensions: 62.1 mm x 62.1 mm x 36 mm (24.4 in x 24.4 in x 1.42 in)
  • Weight: 108.5 g (3.83 oz)
